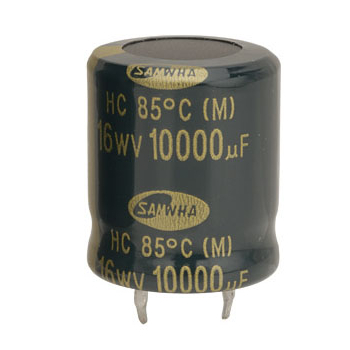

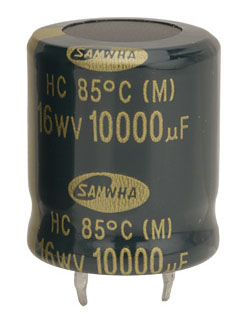

A Samwha HC series, low profile 85°C snap-in capacitor suitable for PCB mounting.
| Operating temperature range | VW ≤350V | –40°C to +85°C | |||
| VW >350V | –25°C to +85°C | ||||
| Tolerance | ±20% | ||||
| Leakage current | I=3(√CV) after 5 mins. | ||||
| Load life | 2000hr. @ 85°C | ||||
| Shelf life | 1000hr. @ 85°C | ||||
| Lead pitch | 10mm | ||||
| Terminal length |
6mm |
Body size: 30mm diameter by 30mm high, 10mm lead pitch.
We use this capacitor in our MFOS synth power supply modules.
