10k 0.4W 0.1% 15ppm Precision Resistor

£0.64
(£0.77 UK, incl VAT)
2000-095
1 g
In Stock
+ −
Add to wish list

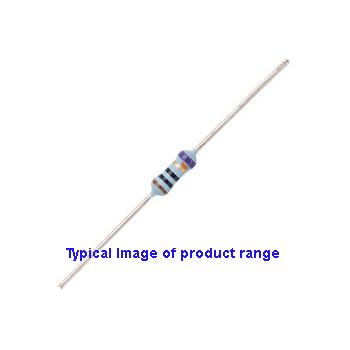

Precision metal film resistor offering high precision coupled with very high stability. Light blue body colour with 5 band colour coding all supplied in a standard 0.25W sized body.

Sold individually.

  • 0.1% tolerance
  • 0.4W rated
  • Equivalent to Welwyn RC55 and Meggitt H8 series
  • BC Components MBB0207 series
Dimensions 6.3 x 2.5mm
Power rating 0.4W @ 70°C
Resistance tolerance ±0.1%
Temperature coefficient ±15ppm
Resistance range 10Ω – 1MΩ
Max working voltage 300V
Climatic category 55/85/56
Operating temperature range –25°C to +125°C
