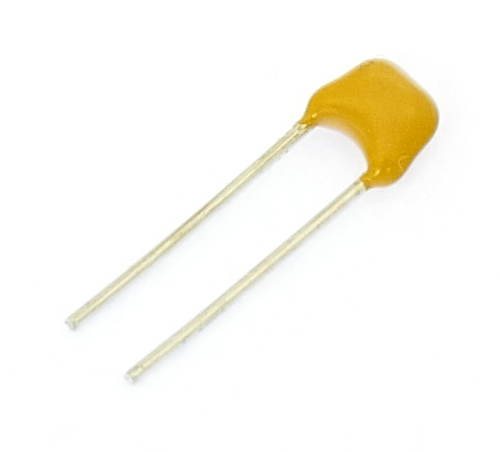

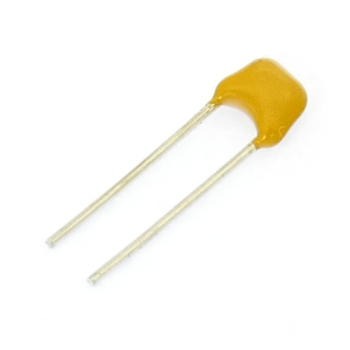

Radial Multi-layer Ceramic Capacitors. The COG (NPO) series is a high Q, low K temperature compensating type of dielectric with stable electrical properties under varying voltage, temperature, frequency and time.
The series is suitable for circuits requiring low loss, circuits with pulse, timing circuits and tuning applications.
Features:
- Very low temperature coefficient
- Stable electrical characteristics
- High capacitance and miniature size
- Consistent dimensions and surface finish
- Engineered for automatic feeding and insertion
General Specifications:
Operating temperature range: -55 to 125°C
Temperature coefficient, DC max. : 0 ±30 ppm/°C
Temp-voltage coefficient DC max.: @WVDC: 0 ±30 ppm/°C
Dissipation factor (tan d), @ 25°C: 0.1% max., 0.02% typical
Insulation resistance (IR), @ 25°C: Lesser of 100GW or 1000MWmF
@ 125°C: Lesser of 1.0GW or 10MWmF
Ageing rate: 0% per decade hour
Testing parameters: 1MHz for units < 1000pF 1.0Vrms ±0.2Vrms, 1KHz for units > 1000pF 25°C, 0V bias
Dielectric withstanding voltage: 2.5X WVDC
See datasheet for more information
