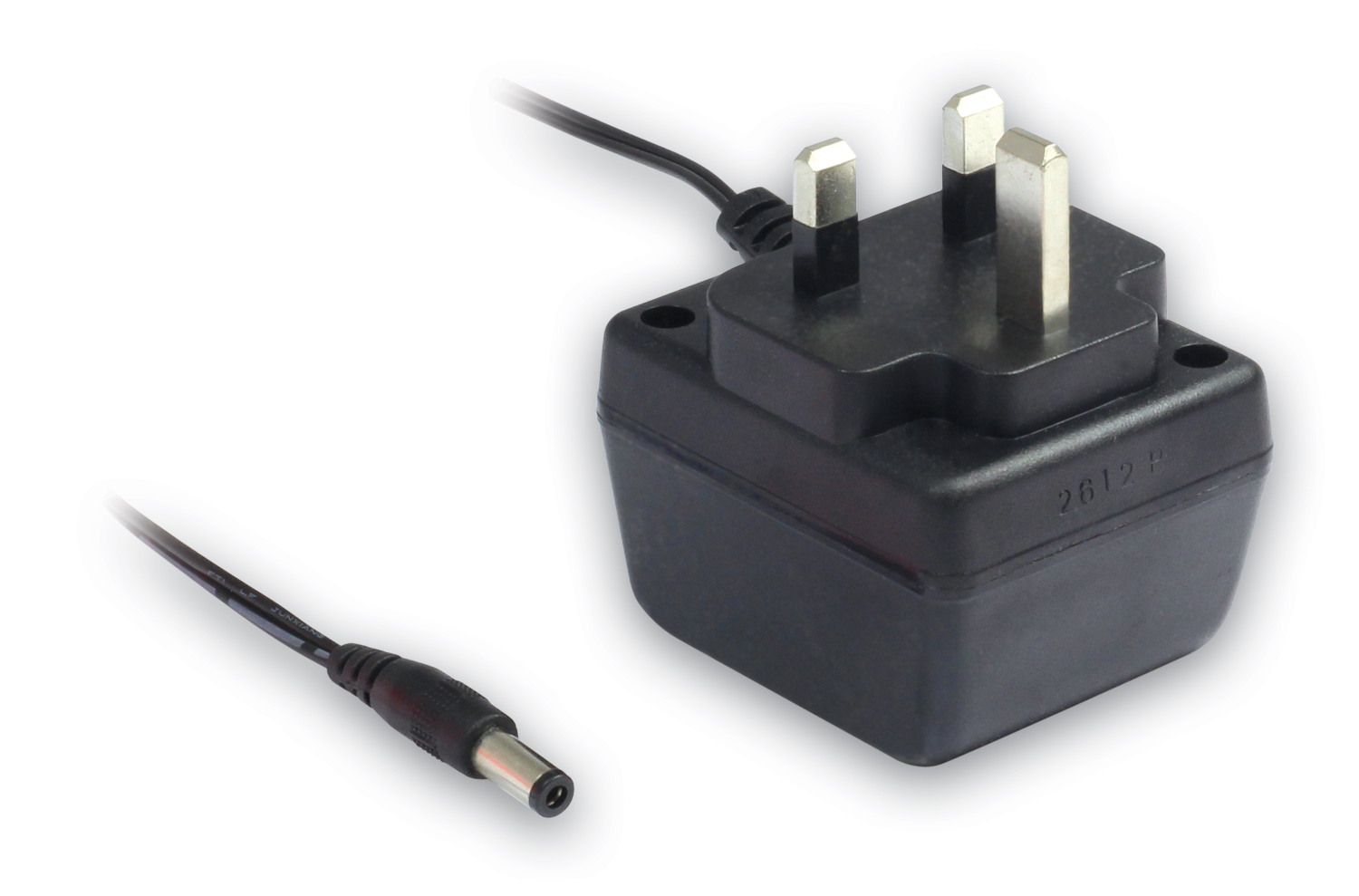

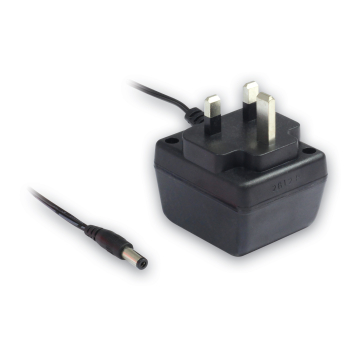

12Vac 600mA UK Power Supply Wall Wart

£13.60
(£16.32 UK, incl VAT)
1090-080
350 g
In Stock
+
Add to wish list

As from 13/2/23 - New version with 20% increased power output

A 12Vac 600mA (note AC not DC) for use with our MFOS wall wart power supplies and MIDI Ultimate. Fitted with a 2.1mm power plug lead (1.8m long). UK Plug only, for EU (lower power) version see here.

7.2VA AC/AC External Adapter UK Plugtop Power Supply (PSU) Series are certified
to UKCA, CE, TUV, RoHS, REACH & EN 62368-1/IEC 62368-1/IEC 61558-1/IEC 61558-2-10 Standards and
comply with (EU) 2019/1782, Level VI Efficiency Regulations.

Plug in Linear AC/AC Adaptor 7.2VA output Power

  • EN61558-1, EN61558-2-6, EN60065 Approved
  • Protection Type: One-Shot Thermal Fuse
  • V-0 Rated Enclosure
  • Operating Temperature -10~40°C
  • RoHS & CE Directive Compliant
  • Light Weight: 285g only
  • ERP II Regulations Compliant

Approved to UK & European Standards

Voltage/Current 12Vac, 600mA
Power max. 7.2W
Output voltage 12Vac
Output current max. 600mA

The unit to be powered must not draw more current than the maximum continuous current of the power supply, in order to prevent overload. The continuous current draw, should be no more than 80% of the output current max (400mA).

New Version 7.2W DB-7.2-12 (1090-080-2.pdf, 224 Kb) [Download]

Ideal Power DB-06-12 Datasheet (1090-080.pdf, 1,006 Kb) [Download]
