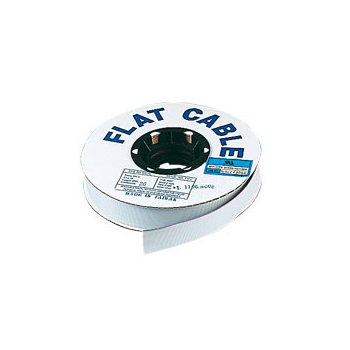

16-Way Flat Ribbon x 20cm

£0.49
(£0.59 UK, incl VAT)
7210-120
6 g
In Stock
+ −
Add to wish list

16-Way Ribbon cable in grey in a cut length of 20cm for use with all styles of IDC connectors. In particular for use with the YuSynth Random Gates module.


  • Consists of parallel stranded tinned copper wire conductors laminated between layers of PVC film to form a flat ribbon cable
  • May be split into individual cores
  • Conductor spacing 0.05in
  • Grey cable has red identification band
  • Fully UL approved to style UL2651
  • Supplied per metre or on reels of  30m

Conductor:                   7/0.127mm tin plated copper (28AWG)

Conductor rating:          1A 300V per conductor

Pitch:                            0.05in (1.27mm)

Conductor resistance:   235Ω/Km (max.)

Capacitance:                 46pF/m

Temperature range:       –20°C to +105°C
