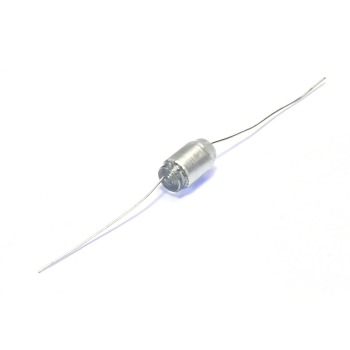

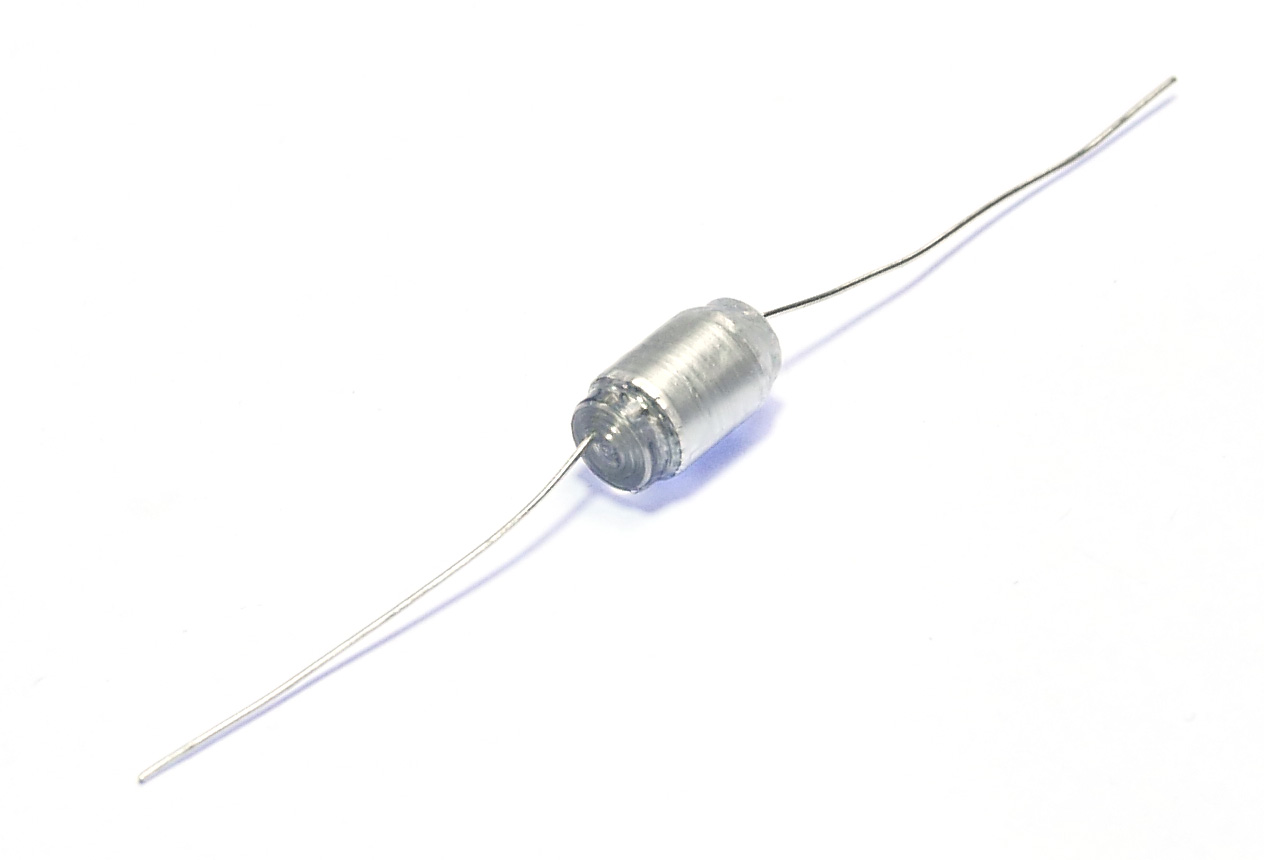

6n8 50V Film Polystyrene Axial Capacitor

£0.44
(£0.53 UK, incl VAT)
2069-232
1 g
In Stock
+ −

Minimum quantity for "6n8 50V Film Polystyrene Axial Capacitor" is 2.

Add to wish list

A Film type capacitor with a polystyrene dielectric.



  • Manufacturer:   Xicon
  • Product Type:   General Purpose
  • Dielectric: Polystyrene (PS)
  • Capacitance: 6800 pF
  • Tolerance: 5 %
  • Voltage Rating: 50 V
  • Operating Temperature Range: - 40 C to + 85 C
  • Termination Style: Radial
  • Case Diameter: 9 mm
  • Case Length: 12 mm
  • Dissipation Factor DF: 0.1% maximum

Features

  • Low temperature coefficient
  • High stability and high insulation resistance
  • Wide frequency range
  • Ideal for high frequency circuits, measuring instruments and analogue music synthesisers.
  • Electrodes and lead are spot welded to reduce series resistance
  • Low dissipation factor
