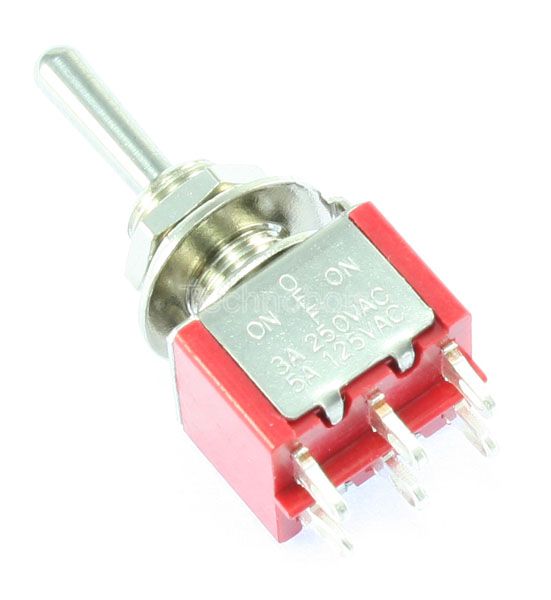

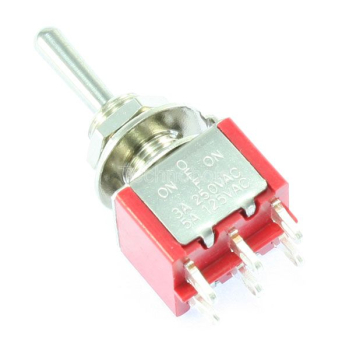

DPDT on/off/on Miniature Toggle Switch

£1.46
(£1.75 UK, incl VAT)
7212-255
7 g
In Stock
+ −
Add to wish list

Like the 7212-252 but with a centre off position.

* Solder lug terminations
* Silver plated copper alloy contacts
* Stainless steel housing
* 5A 125Vac / 28Vdc
*50,000 make and break operations at full load
*Contact resistance 10mOhms maximum
*Insulation resistance 1GOhms
Dielectric strength 1,500Vrms
Operating temperature -30 to +85 Deg C
