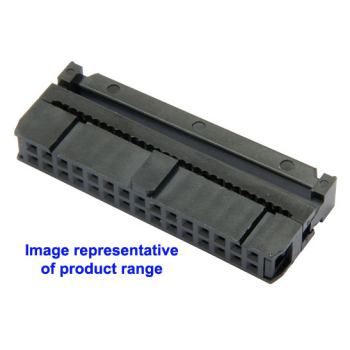

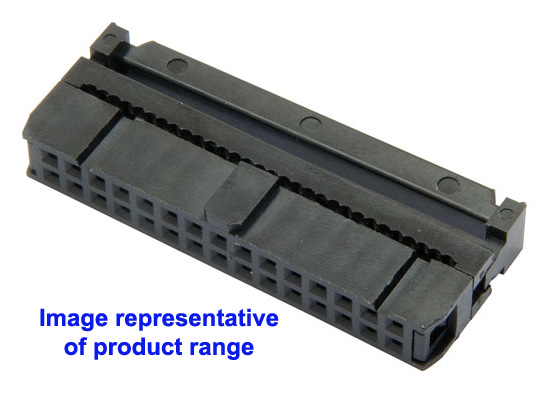

Industry standard ribbon cable connector which mates with 7212-301 PCB header. The multi-socket connection device forms an electrical connection with flat ribbon cable and is supplied complete with cable strain relief. We use these with our Eurorack PCb header for our YuSynth PCBs.
- Number of ways - 10 (2x5)
- Provides a quick and simple interconnection system
- With short polarising bump
- Gold-plated brass contacts
- Designed for use with ribbon cable
| IDC Socket pitch: | 2.54mm |
| Contact: | Brass |
| Plating: | Full gold flash |
| Insulator: | Thermoplastic |
| Contact resistance: | 20mΩ max. (initial) |
| Insulation resistance: | 1000mΩ min. |
| Dielectric withstanding voltage: | AC 500V per minute. |
| Storage temperature: | -20°C to +70°C |
| Operating temperature: | 0°C to +85°C |
| Approvals | UL 94 V-0 |
