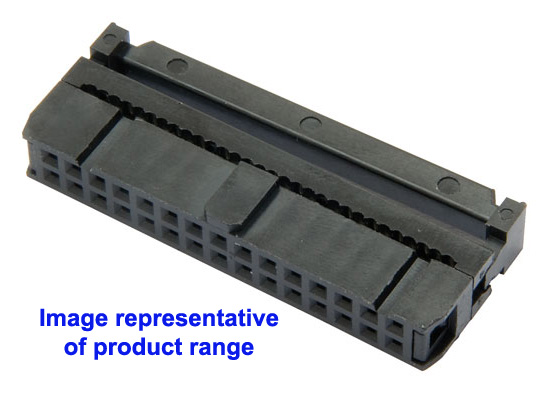

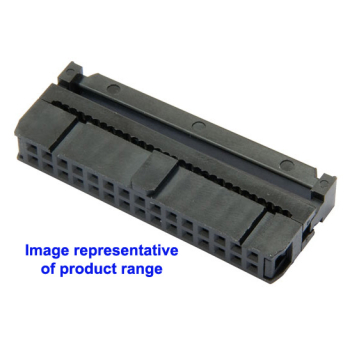

Industry standard ribbon cable connector which mates with 2.54mm pitch PCB headers. The multi-socket connection device forms an electrical connection with flat ribbon cable and is supplied complete with cable strain relief.
- Number of ways - 14 (2x7)
- Provides a quick and simple interconnection system
- With short polarising bump
- Gold-plated brass contacts
- Designed for use with ribbon cable
| IDC Socket pitch: | 2.54mm |
| Contact: | Brass |
| Plating: | Full gold flash |
| Insulator: | Thermoplastic |
| Contact resistance: | 20mΩ max. (initial) |
| Insulation resistance: | 1000mΩ min. |
| Dielectric withstanding voltage: | AC 500V per minute. |
| Storage temperature: | -20°C to +70°C |
| Operating temperature: | 0°C to +85°C |
| Approvals | UL 94 V-0 |
