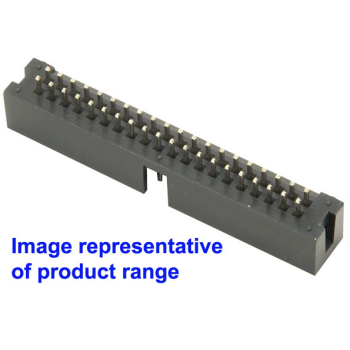

These box headers are a dual row shrouded header for use with our dual row IDC female socket connectors. The low profile, space saving design has a centre slot for the socket''s polarization bump. The headers are available also available in right angle PCB mount.
- Number of ways: 14 (2x7)
- Provides a quick and simple interconnection system
- Gold-plated brass contacts
- Designed for use with ribbon cable
- Available in 10, 14, 16, 20, 26, 34, 40, and 50-way options
| IDC Socket pitch: | 2.54mm |
| Contact: | Copper alloy |
| Plating: | Gold flash plated |
| Insulator: | Thermoplastic |
| Contact resistance: | 20mΩ |
| Insulation resistance: | 1000MΩ min. |
| Dielectric withstanding voltage: | 500V AC 1 minute |
| Storage temperature: | -20°C to +70°C |
| Operating temperature: | 0°C to +85°C |
| Approval | UL 94 V-0 |
