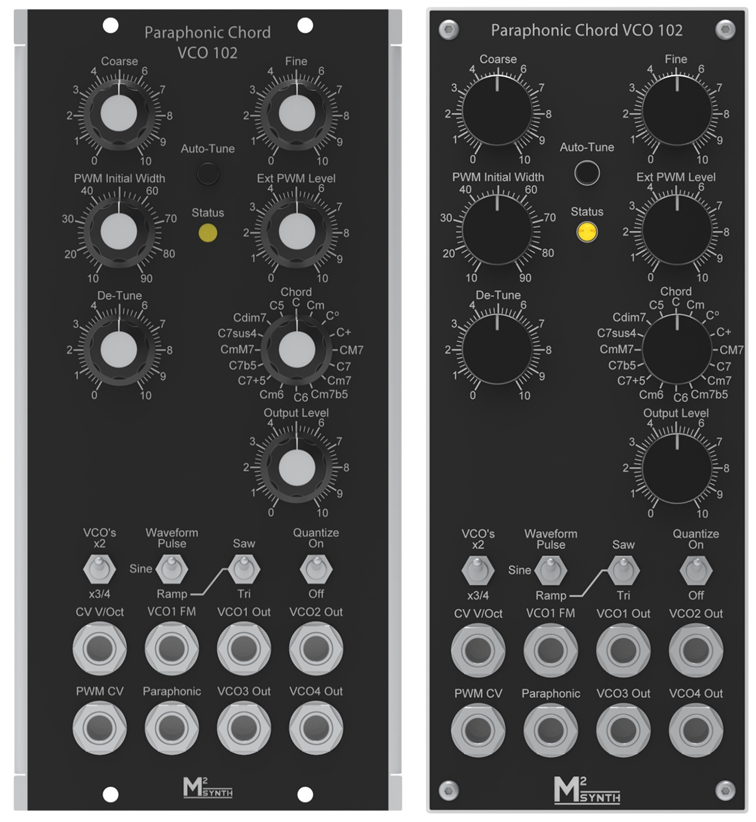

About the Chord VCO 102

Features

• Coarse and fine frequency controls
• 1V Octave CV Input
• Built in Quantizer in semitone steps
• Auto-Tune
• Range - 88 piano notes
• 16 preset chords
• Selectable pulse, sine, saw and tri waveforms
• Each VCO has its own output
• Combined paraphonic output (chord)
• Switch to mute VCO 3 & VCO 4 for 2 note chords
• FM input for VCO 1
• Manual de-tune control

Specification

• Supply voltage +/-12Vdc (note: this module uses two power supply connectors for load sharing). MU version supplied with inline voltage regulators for +/-15V operation.
• Supply current  J9 +26mA / -30mA, J10 +64mA / -66mA
• Waveform levels +/-5V
• PWM CV range 0-10V
• Main PCB dimensions 87.5 x 154.85mm
• VCO PCB dimensions 87.5 x 130.85
