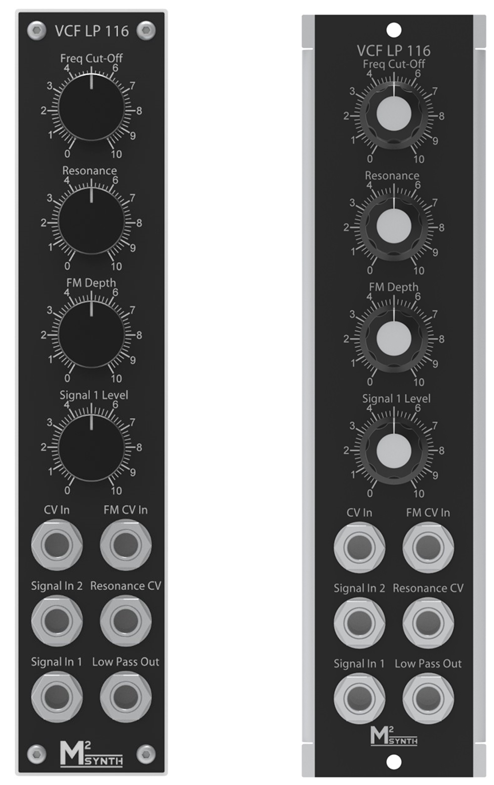

About the Compact LP VCF 116

Features

• 1 Volt / Octave cut-off frequency CV
• Cut-off modulation input with potentiometer attenuator (FM3)
• Resonance potentiometer control with an external CV resonance input
• Self-oscillates with high resonance settings of >70%

Specification

• Supply voltage +/-12Vdc
• Supply current  +13mA / -16mA
• Waveform levels +/-5V
• Frequency range: 18Hz to 14kHz without any CV applied
• Main PCB dimensions 43.5x130mm
