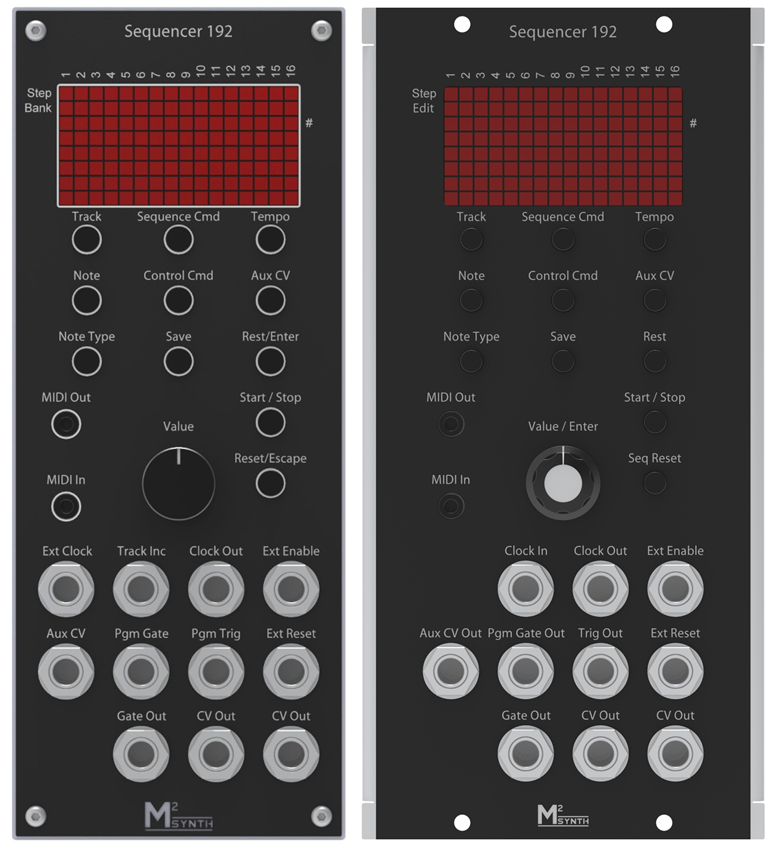

About the Prog Sequencer 192

User Guide

Download the User Manual

Features

Tracks

Each track has the capacity for 48 steps arranged in 3 banks of 16. Each step consisting of a note, rest or sequence command, note type or sequence command value, step control command, gate duration time, auxiliary CV.

Notes

User selectable from C^-1 to G⁹ which covers all 128 MIDI notes of over 10 octaves. 6 Note lengths demisemiquaver to semibreve which equates to 1 clock pulse to 32.

Tempo

10 to 240 BPM where 1 beat is a crotchet

Sequence Commands

• Sequence reset
• Sequence stop
• Sequence reverse
• Goto bank (1-3)
• Goto track (0-99)
• Loop (loop back to start of current bank)
• Repeat sign (repeat section 1-99 times)
• Transpose (up/down up to 19 semitones
• Goto step (1-48)
• Hold (1-99 crotchets)
• Gate on time(5-95% of note length)

Control Commands

• Repeat begin(start of repeat section)
• Programmable gate on
• Programmable gate off
• Ratchet 02 to 32 (number of repeat gates pulse per step)

External Controls

• Gate out
• Trigger out
• CV Out (x2)
• Programmable gate out
• Auxiliary CV out
• Clock out
• Clock in
• Reset input
• Enable input

Specification

• Supply voltage +/-12Vdc
• Supply current +62mA / -6mA
• Main PCB dimensions 87.5x130mm
