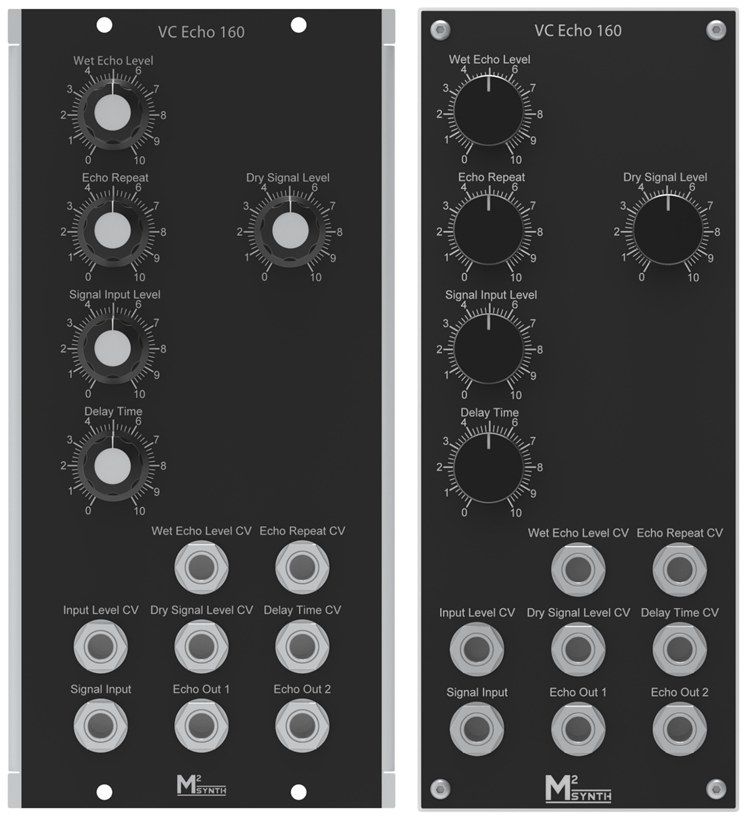

About the VC Echo 160

Features

• Integral VCAs allow for internal & external control of input signal level, dry signal level mix to output & wet echo level
• Internal & external control of delay time and the number of echo repeats

Specification

• Supply voltage +/-12Vdc or +/-15Vdc using the included inline voltage regulator for the MU version
• Supply current: +55mA / -31mA
• Main PCB dimensions 87.5x130mm
• Minimum delay time approximately 45mS
• Maximum delay time with no CV applied > 650mS
