Save 21%

MFOS 7 Segment Env Gen 5Ux2U Aluminium Back Panel

List price: £8.74
£6.93
(£8.32 UK, incl VAT) You save: £1.81 (21%)
7210-822
160 g
2 item(s)
End of line
+ −
Add to wish list

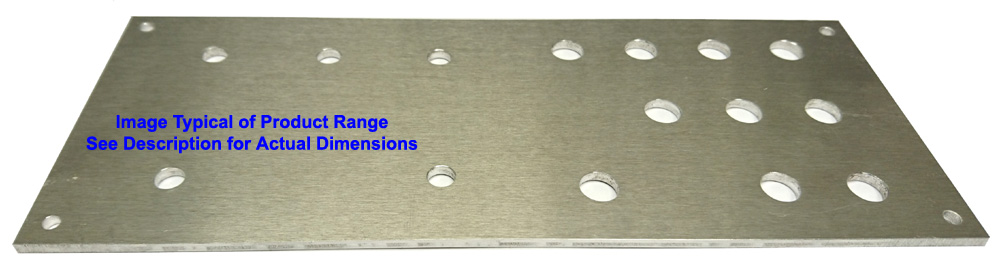

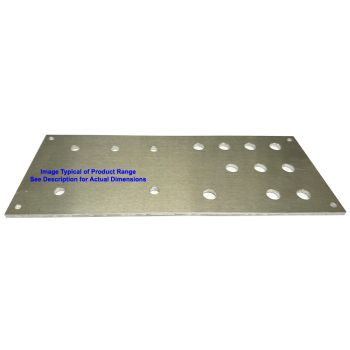

A 5U high by 2U wide (222.25x88.9mm) 3mm thick high grade 5251 H22 aluminium back panel for use with our laser engraved front panel (see Related Products tab above). We manufacture these panels in-house on our CNC router and are supplied ready for use. The panel is also pre-tapped with fixing holes for our 'L' brackets (see Related Products tab above) for attaching the 7 Seg Env Gen Acrylic PCB Holder.

The 3mm thickness + the 1.5mm thickness of the engraved front panel is optimum when used with our sockets, pots, switches and knobs as it minimises any exposed threads.

Downloads

Drawing
