MFOS Multi Function Acrylic PCB Holder

List price: £1.58
£1.31
(£1.57 UK, incl VAT) You save: £0.27 (17%)
7210-940
53 g
1 item(s)
End of line
+ −
Add to wish list

Draft Description, more information and detailed photos to follow.

Introduction

Our 3mm thick acrylic PCB holders are for use with our MFOS synth aluminium back panels. The PCB holder is attached to the aluminium back panel with our Soundtronics 'L' brackets (unless otherwise stated) and the PCB attaches to the holder with a fixing screw set.

Advantages

  • Allows the PCB to be sited in the optimal position independent of panel controls
  • Protects the rear of the PCB from accidental short circuits

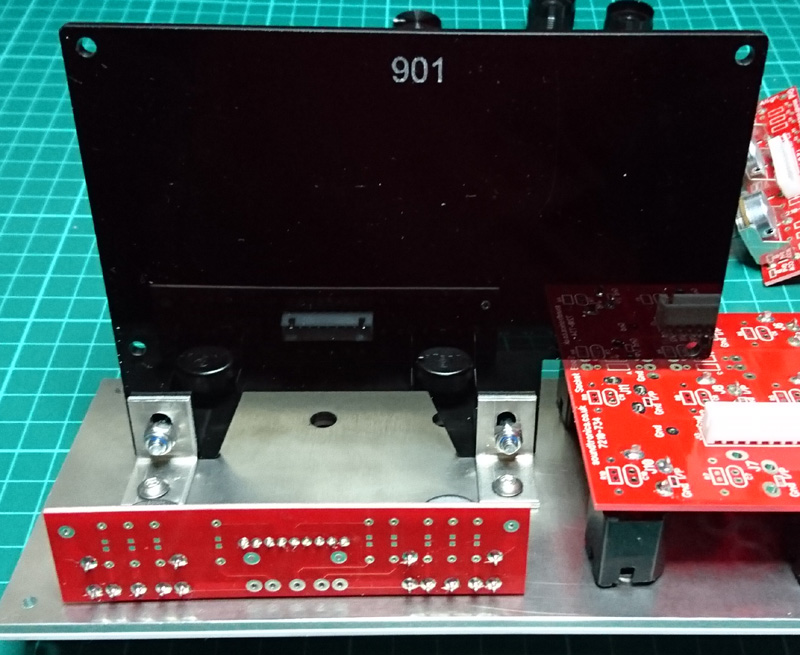

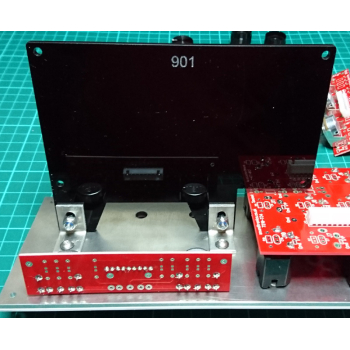

Actual photos of the PCB holder in this module to follow but the following photos of the VCO module shows a typical arrangement.

Soundtronics VCO PCB Holder

Soundtronics VCO MOdule Complete with PCB Holder
