Overview

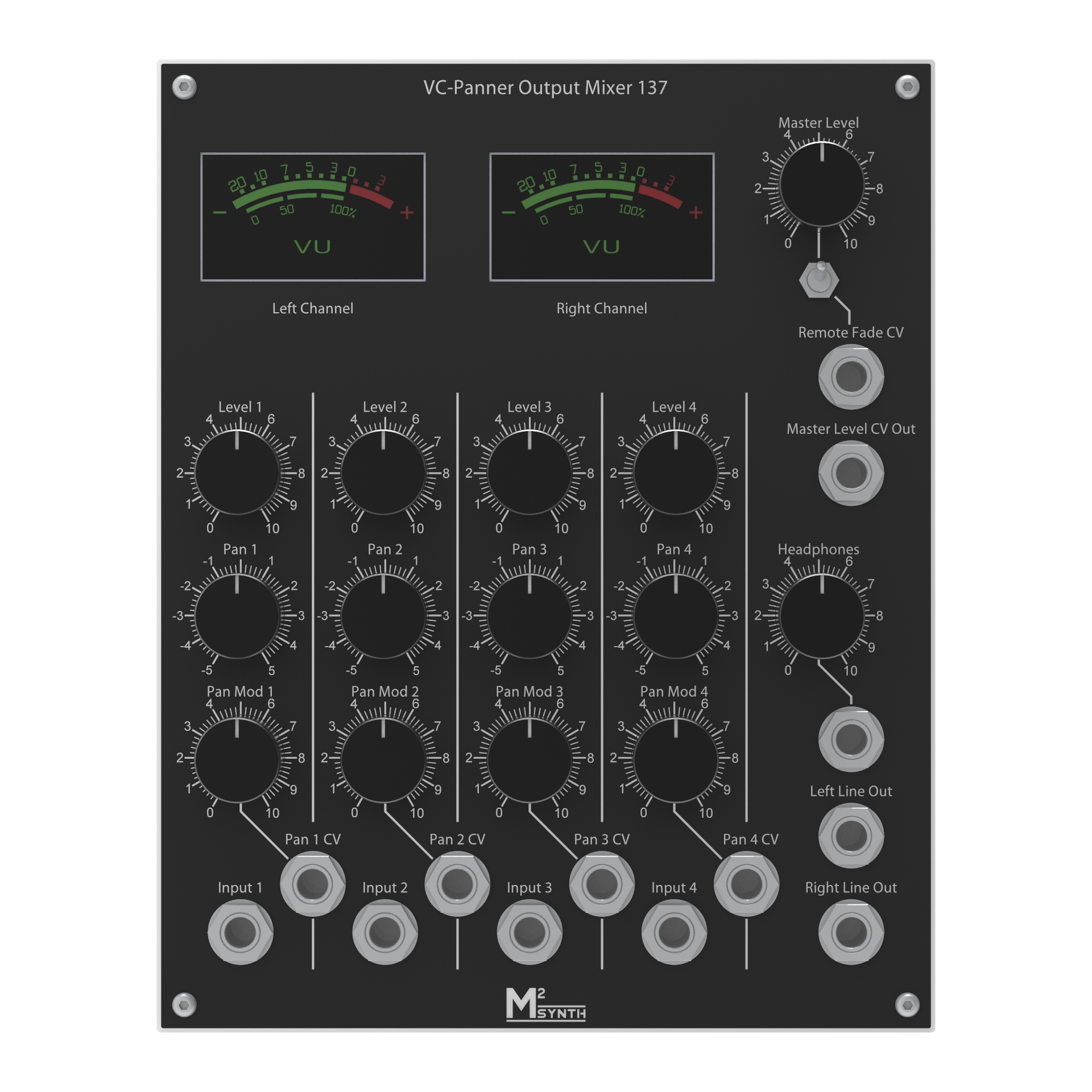

The 3-Channel Mixer 136 is a must have and larger systems could easily have many of these. Now, when you want to compose in stereo, then the 4-channel Panning Mixer 137 is the natural choice. With voltage controlled panning and its back-lit VU meters, it not only performs superbly but looks really retro in the process. Especially large systems can have multiple 137 mixers all linked so that one mixer can control the output level of all cascaded 137 mixers, an easy way to fade out your multi-patch composition at the end of the performance.
Features
- 4-input channels
- Stereo line and headphone outputs
- Initial pan position for each channel
- External panning CV with attenuator control
- Master level control or external fade control voltage to set master level
- Master level control voltage output that can be used as the fade input control voltage to a second mixer 137
Specification
- Supply voltage +/-12Vdc (note: this modules uses two power supply connectors for load sharing)
- Supply current J1 +30mA / -30mA, J2 +36mA / -30mA
- Input signal level +/-5V
- 0-10V control voltages
- Main PCB dimensions 175.26 x 151.424mm
Kit contents
Each kit contains
- Main PCB
- Jack socket PCB
- All electronics components, switches, VU Meters, IC sockets and power socket
- 100mm long Power lead
- Potentiometers, knobs and jack sockets
- Front panel assembly (faceplate and 3mm aluminium back panel)
- Fixings
