Bare PCB

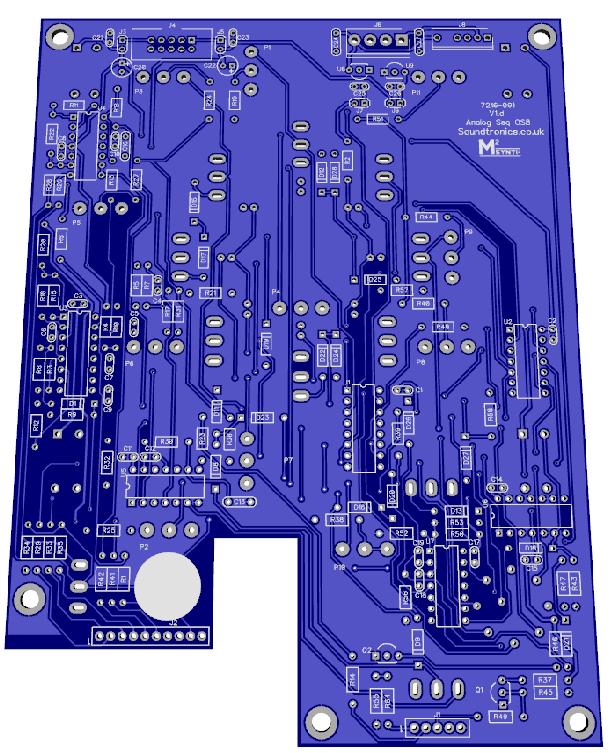

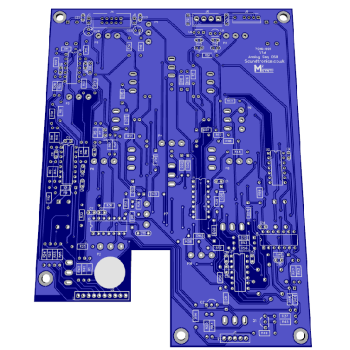

A PCB for building the M²Synth 8-Step Analog Sequencer 191 in either MOTM or MU format. All pots, switches and LEDs are soldered direct to the back of the PCB (coloured blue on the PCB layout) so no panel wiring. You can also add the recommended jack socket breakout PCBs 7215-731 and 7215-703 which makes connecting to the sockets so much easier. Supplied complete with circuit schematic.PCB dimensions 132 x 174mm.
For more info on this module, module specific build guide, general build info (Basics), PCB layout & parts list, see the M² Learn More section.Power Supply Voltage
M2Synth modules are designed for +/-12V operation and we use a 10-pin IDC box header as our standard power supply connector. MOTM and MU systems use a different header and operate at +/-15V. The 191 includes onboard MOTM & MU headers, simply move the jumpers J3 & J5 for +/-12V to J7 & J9 for +/-15V.
Complete Kit
We can supply the MIDI 2 CV converter 140 as a complete kit of parts for MOTM or MU formats offering a saving over purchasing items individually.
Ready Built
Prefer not to solder, a ready assembled version in MU or MOTM versions can be purchased direct from our dedicated website at m2synth.com
Advice
This kit is not suitable for those new to electronics assembly although it does not require test equipment to calibrate the module. For more info about assembling M²Synth modules see this guide
