Overview

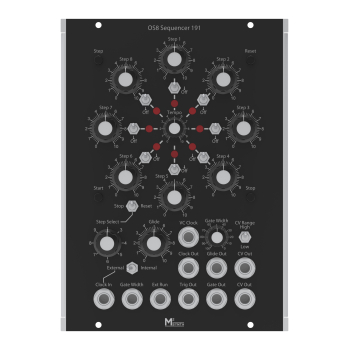

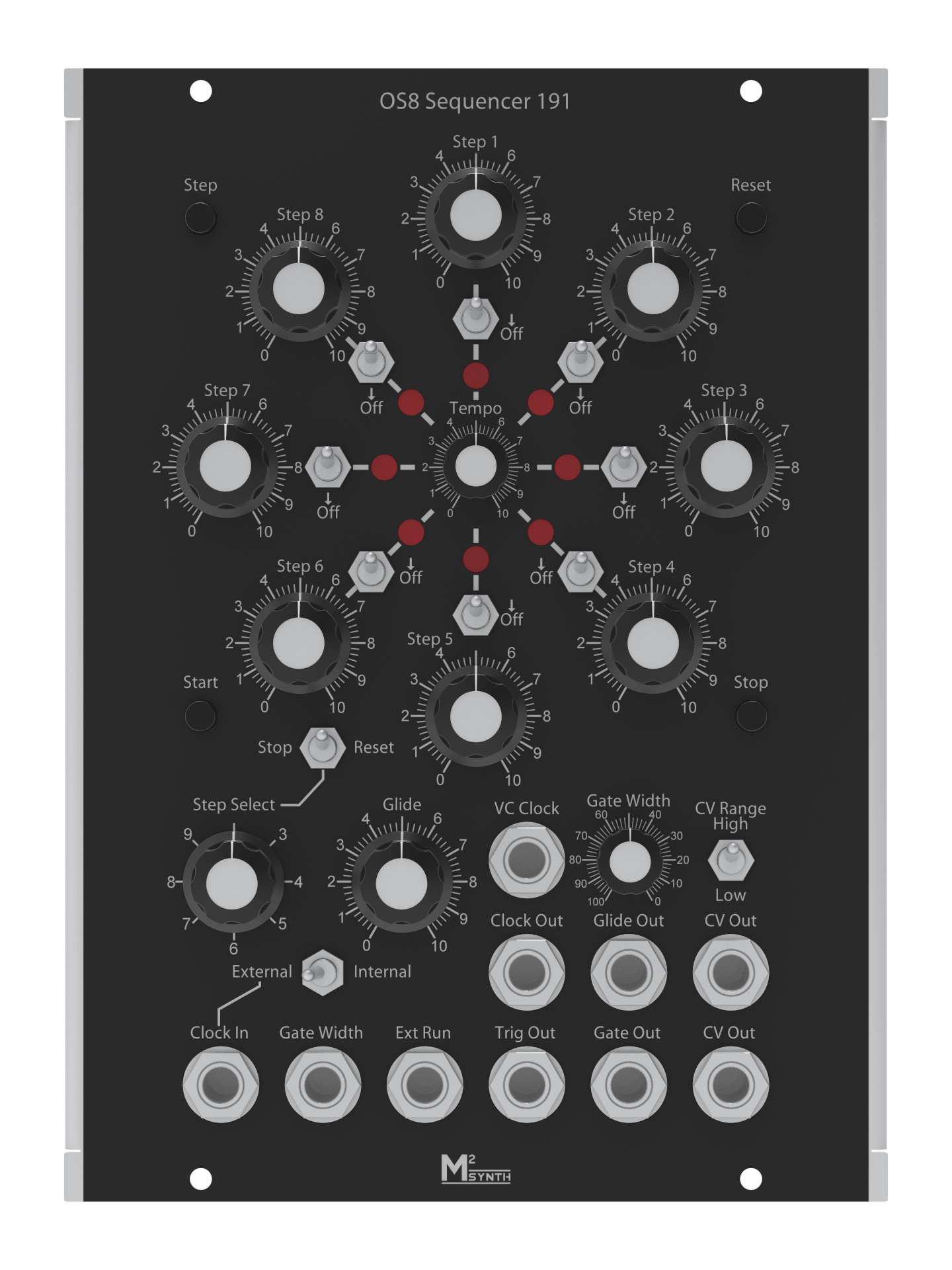

A traditional analog sequencer with 8-steps in a 3 MU wide panel. Also available in a MOTM version here.
Features
- 3U wide 8-step analogue sequencer
- Internal or external clock
- Internal clock (tempo) from 3 BPM (0.05Hz) to 21,000 BPM (350Hz)
- External clock from to >100khz (recommended < 50kHz)
- Internal clock voltage controlled (tempo) range dependant on tempo pot position
- Tempo 0%: 0V = 0.05Hz, 10V = 80Hz
- Tempo = 50%: 0V = 1Hz, 10V = 1kHz (maximum)
- Clock output socket
- Gate and trigger outputs, trigger pulse with 2mS.
- Gate output adjustable from 5 to 95% using pot or external CV. External gate CV
- With gate width control set to 0% (fully CW), external CV gives 5 to 95% for an CV of 0-10V
- CV output with range switch 0-3V or 0-10V
- Additional CV output with adjustable glide control (1 to 700mS)
- Start, stop, reset and step control buttons
- Selector switch to reduce the number of steps from 3 to 8 and then reset or stop
- External Run input that triggers sequencer on voltages >0.7V
- Operates on +/-12V (M²Synth power header) or on +/-15V via integral MOTM and Dotcom headers (select voltage using on-board jumpers)
Specification
- Supply voltage +/-12Vdc or +/-15V (jumpers J3 & J5 for +/-12V or J7 & J9 for +/-15V)
- Supply current +22mA / -17mA
- Main PCB dimensions 131.95x174.05mm
Kit contents
Each kit contains
- Main PCB
- Jack socket PCBs
- All electronics components, IC sockets and power socket
- 100mm long Power lead
- Potentiometers, switches, knobs and jack sockets
- Front panel assembly (faceplate and 3mm aluminium back panel)
- Fixings
