Overview

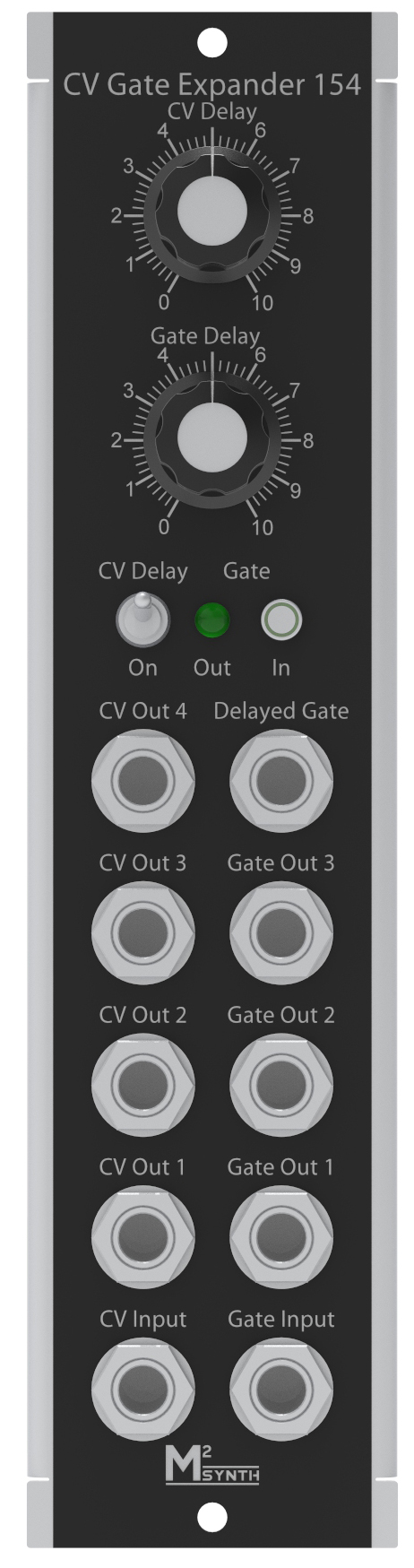

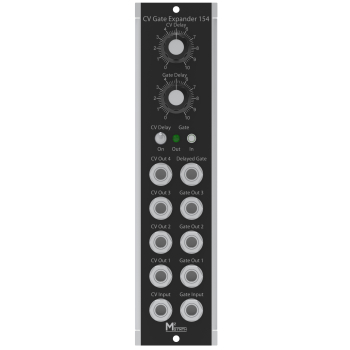

An active buffered CV and gate Multiple. Takes one CV input and creates four buffered copies. Flick a switch and you can add a variable CV delay (portamento) to the CV outputs. For gates signals, a single gate input creates 3 buffered copies plus an additional variable delayed gate output. A manual illuminated pushbutton gate switch and LED gate output indication complete the features.
Features
- Creates ‘Multiples’ of both CV and Gate signal
- Single CV input creates four copy outputs
- Switch in a CV variable delay (portamento) to the CV outputs
- Single gate input creates 3 copy outputs + a forth variable delayed output
- Illuminated gate input pushbutton
- LED indicating the gate output
Specification
- Supply voltage +/-12Vdc
- Supply current +15mA / -12mA
- Output level 0-10V
- Main PCB dimensions 43.5 x 86.7mm
Kit contents
Each kit contains
- Main PCB
- Jack socket PCB
- All electronics components, IC sockets and power socket
- Potentiometers, switch, knobs and jack sockets
- Front panel assembly (faceplate and 3mm aluminium back panel)
- Fixings
- Fully assembled and boxed 15V in-line voltage regulator with MU and MOTM headers (MOTM header supplied loose)
