M²Synth MU Format MIDI 2 CV Converter 140 Kit

£125.00
(£150.00 UK, incl VAT)
7216-340
390 g
1-2 Weeks
+ −
Add to wish list

Overview

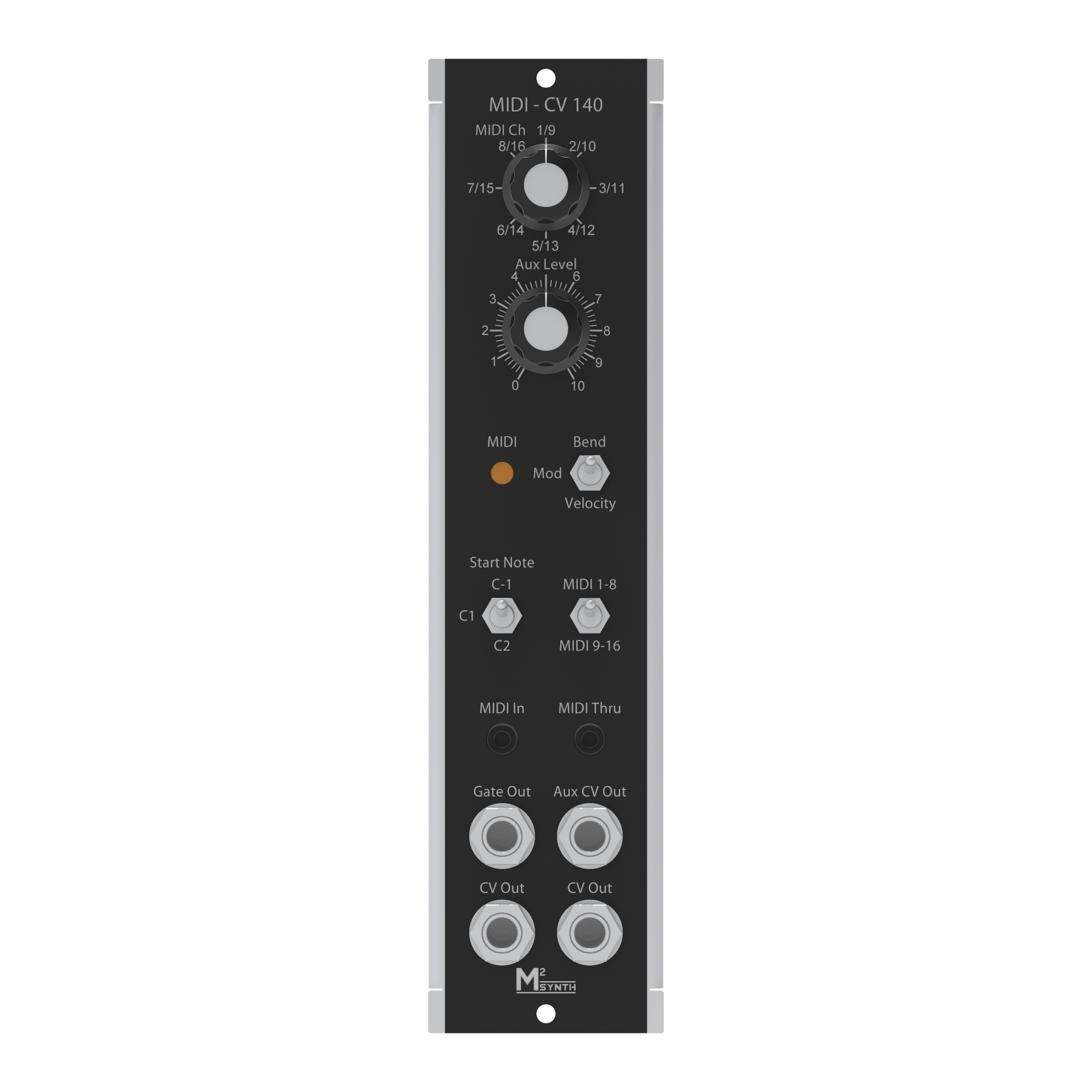

The MIDI 2 CV Converter features in all of our systems including the starter System 10. With the 140 module, you can plug in your MIDI keyboard or your PC via a USB to MIDI converter. The 140 also has an auxiliary output that can be used for pitch bend, modulation wheel or key velocity.

Features

  • Switchable from MIDI channel 1 to 16
  • LED MIDI signal status LED
  • Responds to all 128 MIDI notes
  • Switch to select what MIDI note 0V relates to C-1, C1 or C2
  • MIDI thru so you can cascade 140s in larger systems

Specification

  • Supply voltage +/-15Vdc using the included inline voltage regulator
  • Supply current  +20mA / -3mA
  • MIDI CV output voltage range 0-10.58V
  • Aux CV output 0-10V with attenuator
  • Gate voltage 5V
  • MIDI jacks 3.5mm
  • Main PCB dimensions 43.5x154.85mm

Kit contents

Each kit contains

  • Main PCB
  • Jack socket PCB
  • All electronics components, switches, pre-programmed CPU, IC sockets and power socket
  • 100mm long Power lead
  • Potentiometers, knobs and jack sockets
  • Front panel assembly (faceplate and 3mm PCB holder)
  • Fixings
  • Fully assembled and boxed 15V in-line voltage regulator with MU and MOTM headers

Assembly Guide (140_MIDI2CV.pdf, 125 Kb) [Download]
