Overview

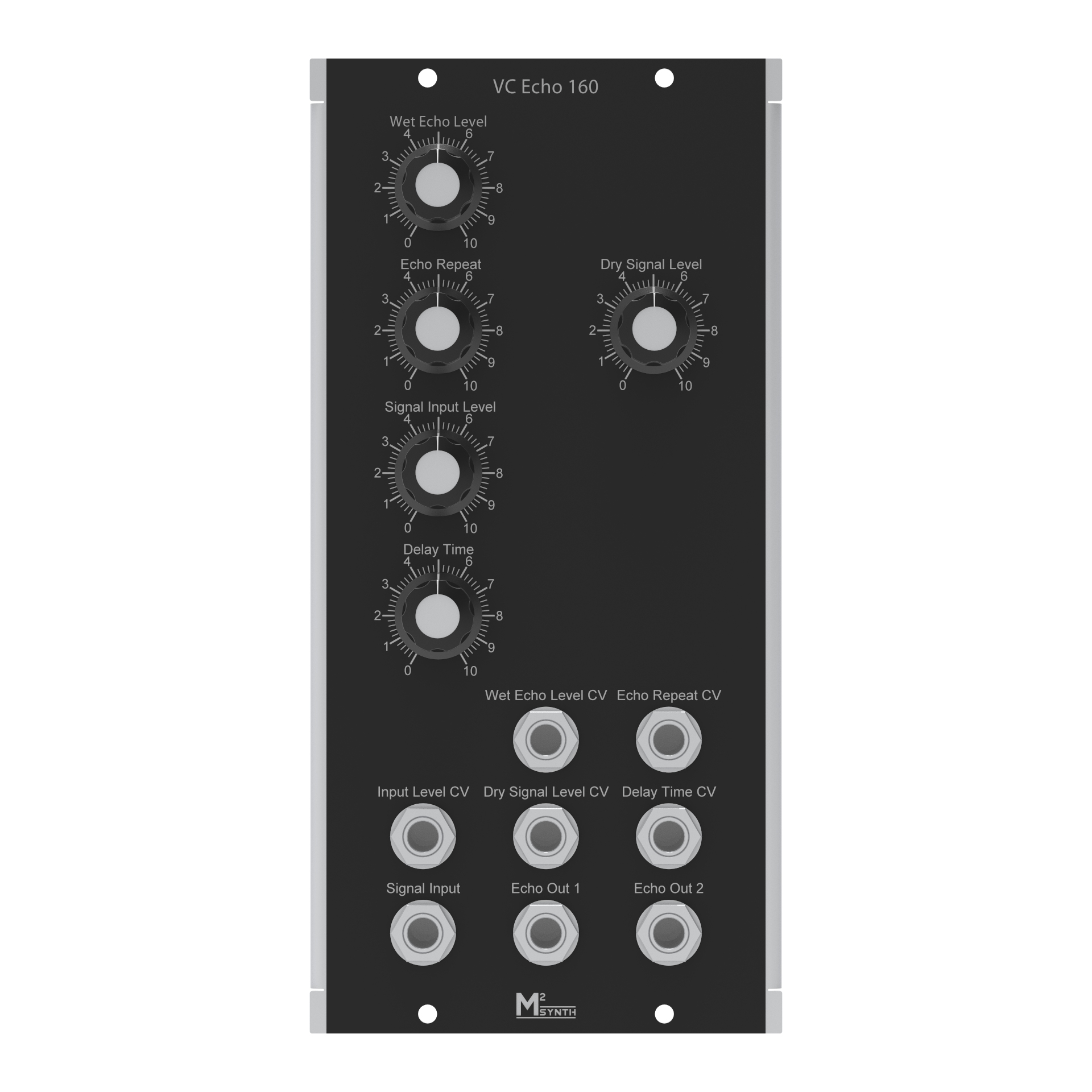

A PT chip based echo module with the addition of being able to control the five main parameters using external control voltages.
Features
- Integral VCAs allow for internal & external control of input signal level, dry signal level mix to output & wet echo level
- Internal & external control of delay time and the number of echo repeats
Specification
- Supply voltage +/-15Vdc using the included inline voltage regulator
- Supply current +55mA / -31mA
- Main PCB dimensions 87.5x130mm
- Minimum delay time approximately 45mS
- Maximum delay time with no CV applied > 650mS
Kit contents
Each kit contains
- Main PCB
- Jack socket PCB
- All electronics components, IC sockets and power socket
- 100mm long Power lead
- Potentiometers, knobs and jack sockets
- Front panel assembly (faceplate and 3mm PCB holder)
- Fixings
- Fully assembled and boxed 15V in-line voltage regulator with MU and MOTM headers
