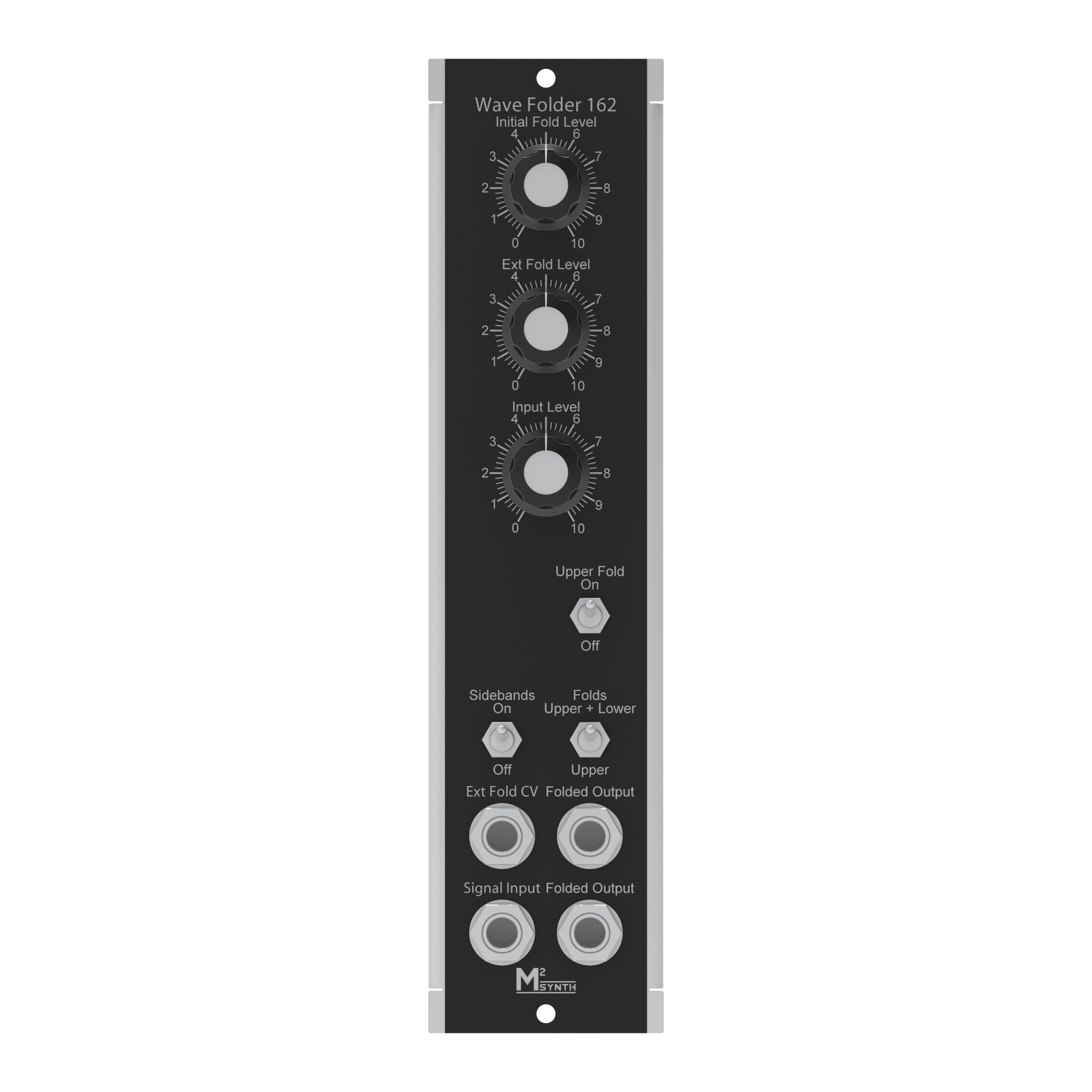

M²Synth MU Format Wave Folder 162 Kit

£95.00
(£114.00 UK, incl VAT)
7216-362
390 g
1-2 Weeks
+ −
Add to wish list

A bit of a favourite of ours is the wave folder and the wonderful harmonics it creates. Rather than just limit the module to wave folding, additional switch controls allow aspects of the folded waveform to be switch in or out.

Features

  • Switch controls to select whether folds and sidebands are on/off,
  • External control voltage of fold threshold

Specification

  • Supply voltage +/-15Vdc using the included inline voltage regulator
  • Supply current  +mA / -mA
  • Main PCB dimensions 43.5x154.85mm

Kit contents

Each kit contains

  • Main PCB
  • Jack socket PCB
  • All electronics components, IC sockets and power socket
  • 100mm long Power lead
  • Potentiometers, switches, knobs and jack sockets
  • Front panel assembly (faceplate and 3mm PCB holder)
  • Fixings
  • Fully assembled and boxed 15V in-line voltage regulator with MU and MOTM headers
