Overview

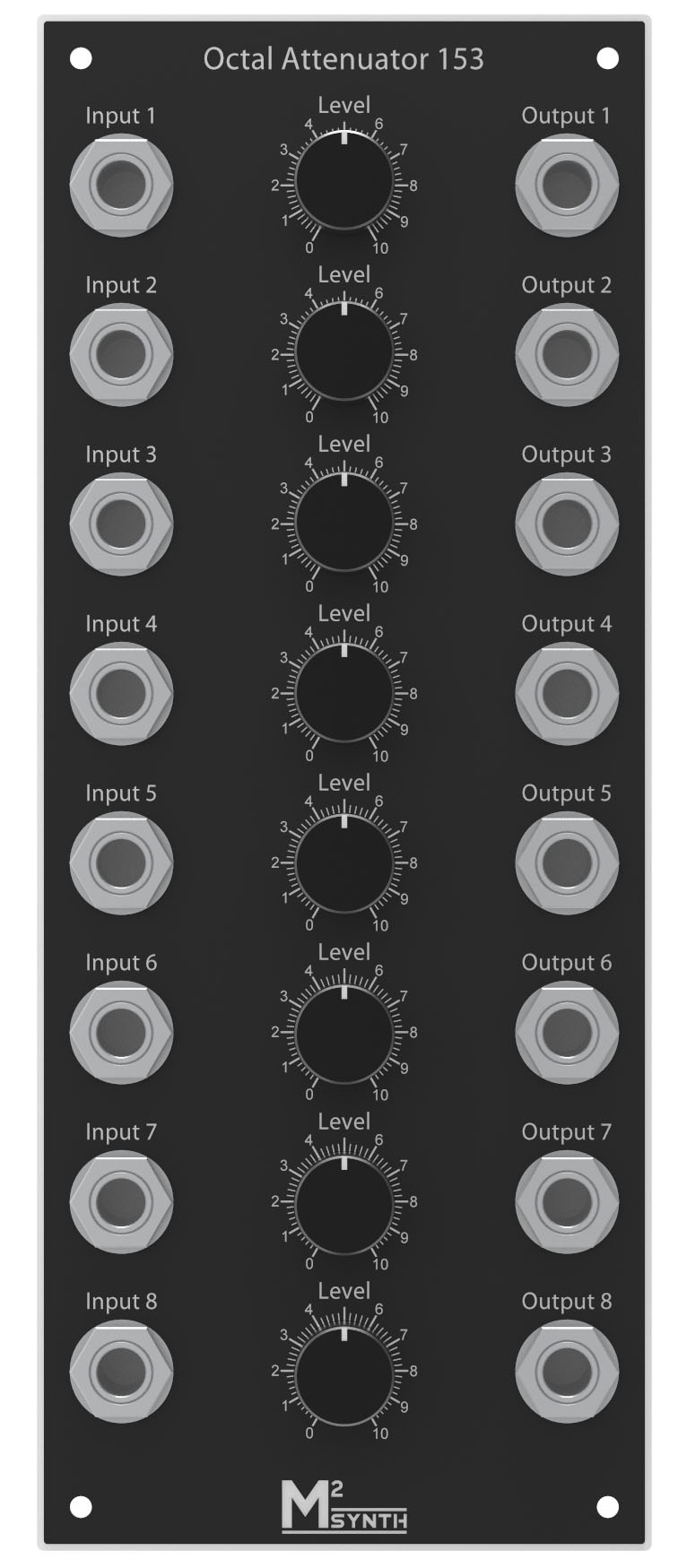

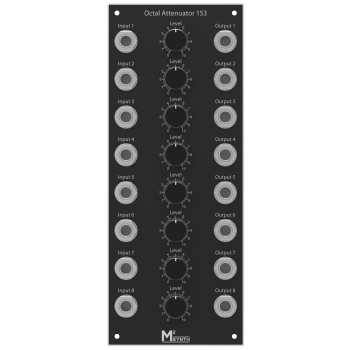

The Octal Attenuator utility module is about as simple as it gets. 8 independent channels that can be used to attenuate audio signals & CV controls from 0 to 100%.
Features
- 8 independent channels
- Each channel has input & output 1/4" jack sockets plus a potentiometer control
Specification
- Supply voltage: No power supply required
- Supply current: Not applicable
- Input Level: +/-5V or -10V
- Main socket PCB dimensions 87.5 x 192.25mm, Pot PCB 32 x 192.25mm
Kit contents
Each kit contains

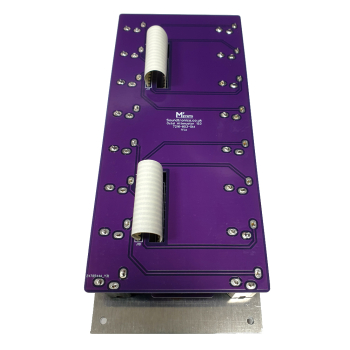

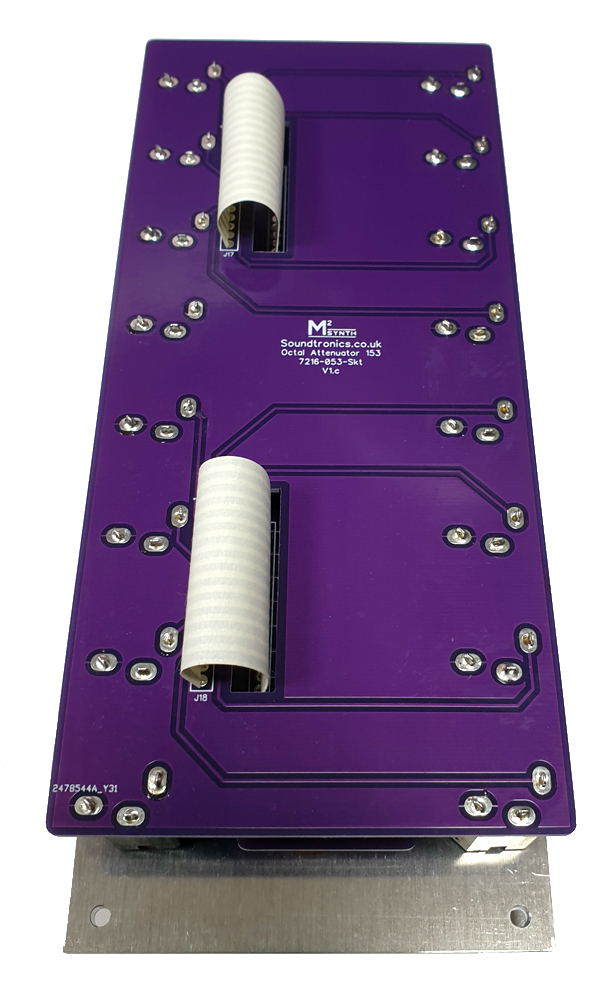

- Main socket PCB
- Pot PCB
- Potentiometers, knobs and jack sockets
- Flexstrips
- Front panel assembly (faceplate and 3mm aluminium back panel)
- Fixings
