Bare PCB

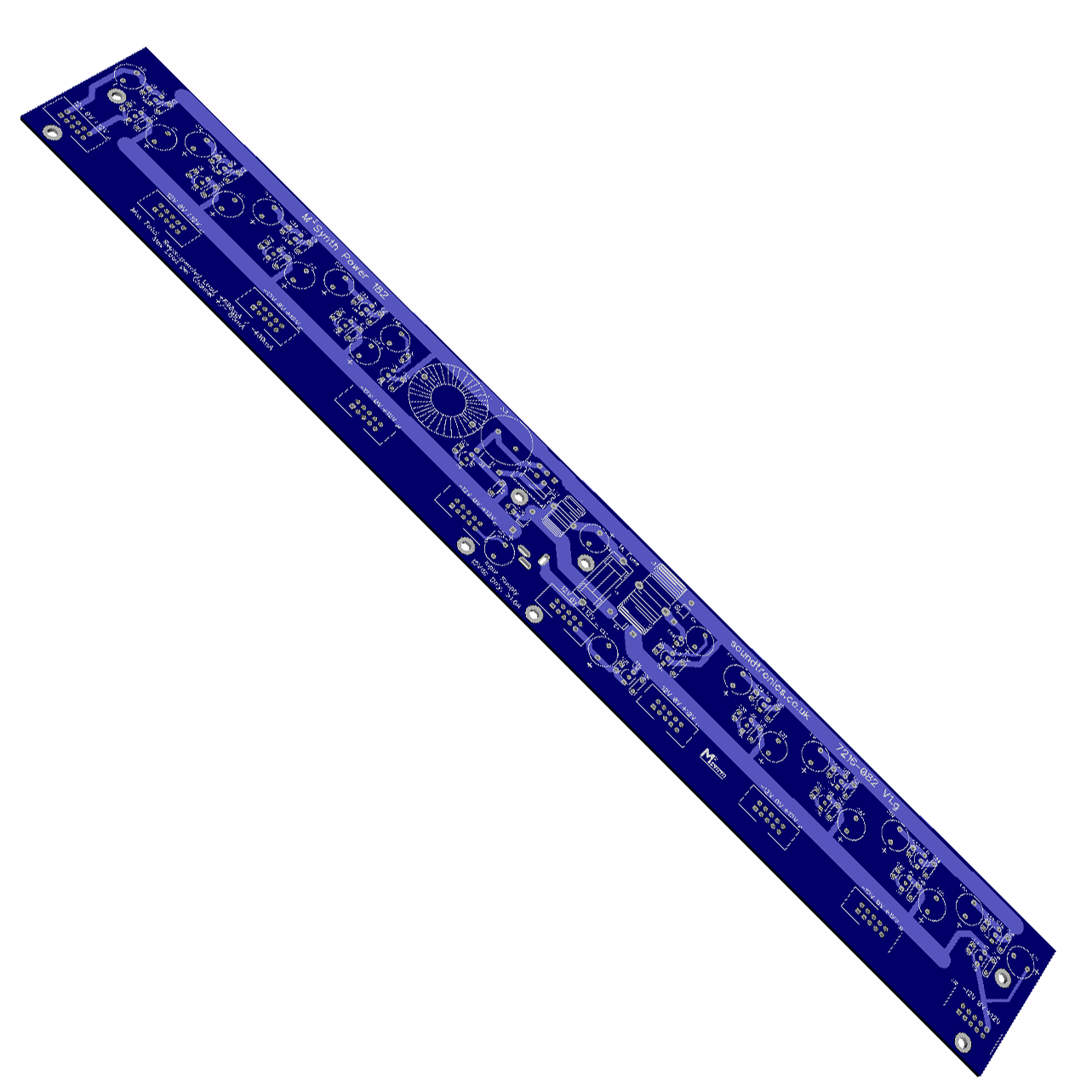

The main PCB for building the M²Synth Pod power Distribution board. Read more on the M²Synth power supplies here. This board is alaso available as part of a complete kit 7216-282. Supplied complete with circuit schematic. The PCB is designed to be used with further mounting hardware which is detailed in the build guide below. PCB size 420 x 53mm.

For more info on this module, module specific build guide, general build info (Basics), PCB layout & parts list, see the M² Learn More section.

Power Supply Voltage

M2Synth modules are designed for +/-12V operation and we use a 10-pin IDC box header as our standard power supply connector. This board comes with ten box headers each with their own +12V and -12V voltage regulators all derived from a single 15V power brick (not included).

Complete Kit

We can supply the Pod Power distribution board as a complete kit 7216-282.

Ready Built

Prefer not to solder, a ready assembled version in MU or MOTM versions can be purchased direct from our dedicated website at m2synth.com

Advice

This kit is not suitable for those new to electronics assembly for more info about assembling M²Synth modules see this guide
