Bare PCB

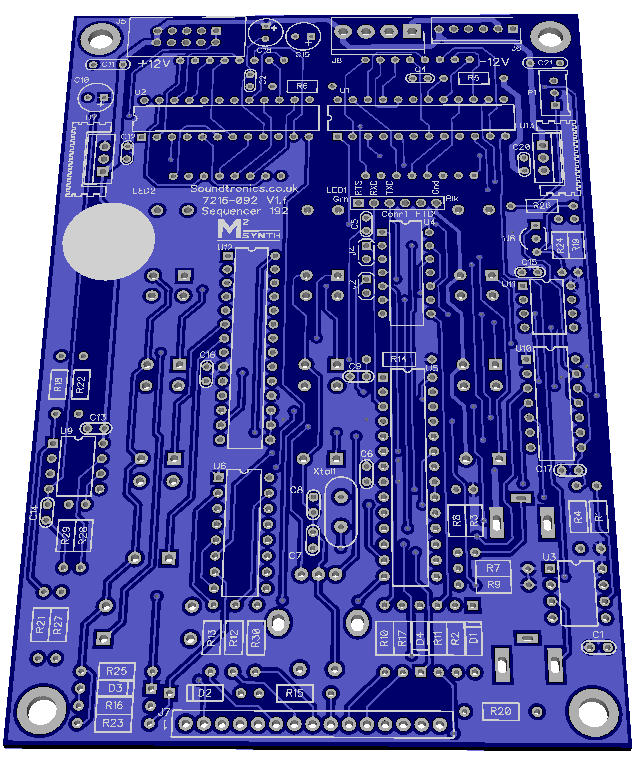

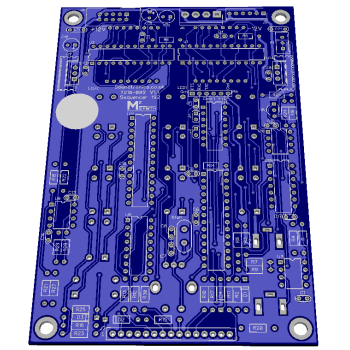

The main PCB for building the M²Synth Programmable Sequencer 192 in either MOTM or MU format.  All pots and switches are soldered direct to the back of the PCB (coloured blue on the PCB layout) so no panel wiring. You can also add the recommended jack socket breakout PCB 7215-743 which makes connecting to the sockets so much easier. Supplied complete with circuit schematic. PCB size 87.5 x 130mm.

For more info on this module, module specific build guide, general build info (Basics), PCB layout & parts list, see the M² Learn More section.

Power Supply Voltage

M2Synth modules are designed for +/-12V operation and we use a 10-pin IDC box header as our standard power supply connector. MOTM and MU systems use a different header and operate at +/-15V. This module actually accomodates the M²Synth standard box header plus MOTM and MU headers and will operate from +/-12V to +/-15V.

Complete Kit

We can supply the Programmable Sequencer 192 as a complete kit of parts for MOTM or MU formats offering a saving over purchasing items individually.

Ready Built

Prefer not to solder, a ready assembled version in MU or MOTM versions can be purchased direct from our dedicated website at m2synth.com

Advice

This kit is not suitable for those new to electronics assembly and requires test equipment to calibrate the module. For more info about assembling M²Synth modules see this guide
