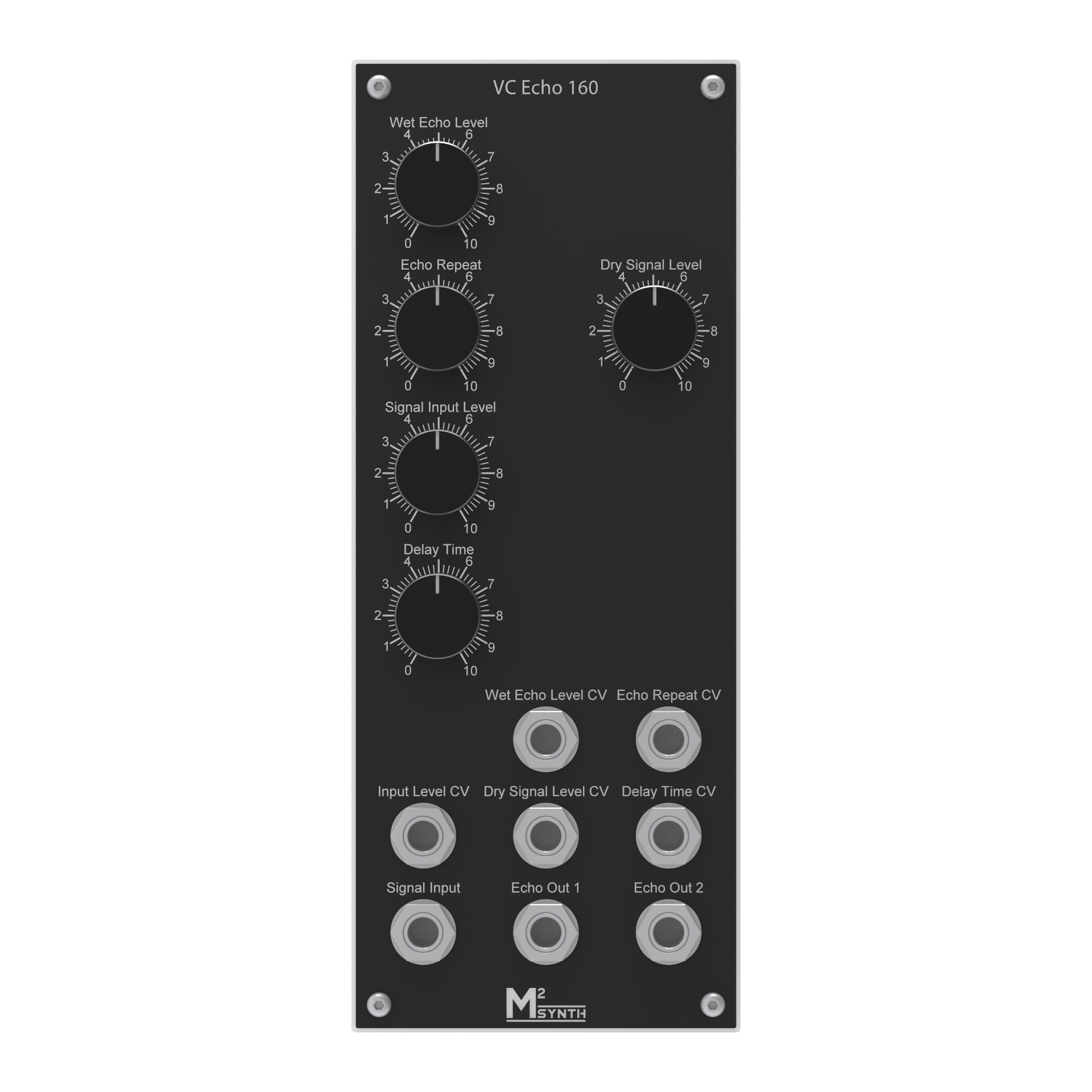

M²Synth VC Echo 160 Kit

£95.00
(£114.00 UK, incl VAT)
7216-260
200 g
2-4 Working Days
+
Add to wish list

Overview

A PT chip based echo module with the addition of being able to control the five main parameters using external control voltages.

Features

  • Integral VCAs allow for internal & external control of input signal level, dry signal level mix to output & wet echo level
  • Internal & external control of delay time and the number of echo repeats

Specification

  • Supply voltage +/-12Vdc
  • Supply current  +55mA / -31mA
  • Main PCB dimensions 87.5x130mm
  • Minimum delay time approximately 45mS
  • Maximum delay time with no CV applied > 650mS

Kit contents

Each kit contains

  • Main PCB
  • Jack socket PCB
  • All electronics components, IC sockets and power socket
  • 100mm long Power lead
  • Potentiometers, knobs and jack sockets
  • Front panel assembly (faceplate and 3mm aluminium back panel)
  • Fixings
