Overview
A bit of a favourite of ours is the wave folder and the wonderful harmonics it creates. Rather than just limit the module to wave folding, additional switch controls allow aspects of the folded waveform to be switch in or out.
Features
- Switch controls to select whether folds and sidebands are on/off,
- External control voltage of fold threshold
Specification
- Supply voltage +/-12Vdc
- Supply current +mA / -mA
- Main PCB dimensions 43.5x154.85mm
Kit contents
Each kit contains
- Main PCB
- Jack socket PCB
- All electronics components, IC sockets and power socket
- 100mm long Power lead
- Potentiometers, switches, knobs and jack sockets

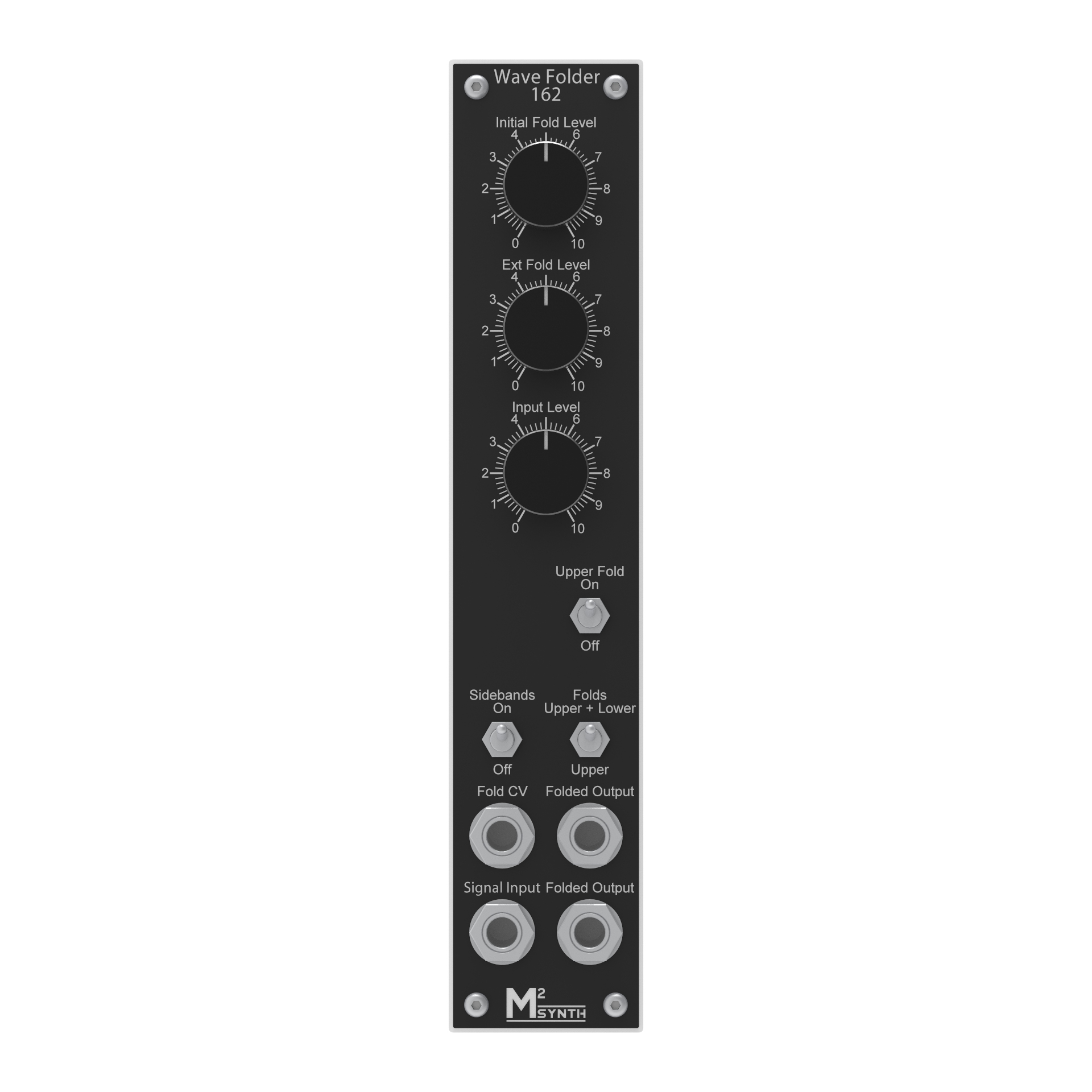

- Front panel assembly (faceplate and 3mm aluminium back panel)
- Fixings
