Phaser 149 Build Guide
Assembly Instructions
The Phaser 149 module has no particular build requirements not already covered in the ‘General Build Info' page.
Calibration
This module requires no calibration or tuning.
PCB Parts List
| Part Number | Quantity | Value | Name | RefDes |
| 7212-731 | 2 | 22p | 22p MLCC Capacitor | C1, C12 |
| 7213-305 | 2 | 2u2 Non-Pol | 2u2 Non-Pol Electrolytic | C2, C11 |
| 7212-734 | 8 | 100p | 100p MLCC Capacitor | C3, C4, C5, C6, C7, C8, C9, C10 |
| 7213-110 | 2 | 100u | 100uF 25V Electrolytic | C13, C19 |
| 7212-768 | 8 | 100n | 100n MLCC Capacitor | C14, C15, C16, C17, C20, C21, C22, C23 |
| 7212-770 | 1 | 470n | 470n MLCC Capacitor | C18 |
| 7213-922 | 1 | LED - White | D1 | |
| 7212-486 | 1 | 1N914 | D2 | |
| 7212-301 | 1 | Eurorack | Eurorack Power | J1 |
| 1208-005 | 1 | Flex Strip 5way | J2 | |
| Pot 100k Lin PCB Angle* | P1, P2, P4, P5 | |||
| 7212-409 | 1 | 2N3904 | Q1 | |
| 7163-096 | 10 | 75k | 75k 0.25W 1% Metal Film Resistor | R1, R2, R4, R5, R15, R16, R18, R19, R30, R43 |
| 7163-095 | 8 | 68k | 68k 0.25W 1% Metal Film Resistor | R3, R6, R7, R8, R17, R20, R21, R22 |
| 7163-099 | 10 | 100k | 100k 0.25W 1% Metal Film Resistor | R9, R13, R27, R32, R33, R37, R49, R50, R53, R54 |
| 7163-107 | 7 | 220k | 220k 0.25W 1% Metal Film Resistor | R10, R11, R12, R23, R24, R25, R26 |
| 7163-051 | 3 | 1k | 1k 0.25W 1% Metal Film Resistor | R14, R38, R45 |
| 7163-053 | 4 | 1k2 | 1k2 0.25W 1% Metal Film Resistor | R28, R29, R39, R42 |
| 7163-101 | 1 | 120k | 120k 0.25W 1% Metal Film Resistor | R31 |
| 7163-103 | 3 | 150k | 150k 0.25W 1% Metal Film Resistor | R34, R36, R40 |
| 7163-097 | 1 | 82k | 82k 0.25W 1% Metal Film Resistor | R35 |
| 7163-089 | 1 | 39k | 39k 0.25W 1% Metal Film Resistor | R41 |
| 7163-070 | 1 | 6k2 | 6k2 0.25W 1% Metal Film Resistor | R44 |
| 7163-078 | 1 | 13k | 13k 0.25W 1% Metal Film Resistor | R46 |
| 7163-110 | 1 | 300k | 300k 0.25W 1% Metal Film Resistor | R47 |
| 7163-100 | 1 | 110k | 110k 0.25W 1% Metal Film Resistor | R48 |
| 7163-027 | 1 | 100R | 100R 0.25W 1% Metal Film Resistor | R51 |
| 7163-109 | 1 | 270k | 270k 0.25W 1% Metal Film Resistor | R52 |
| 7212-250 | 2 | SPDT | S1, S2 | |
| 7212-589 | 2 | AS3320 | U1, U2 | |
| 7212-544 | 1 | TL074 | U3 | |
| 7212-542 | 1 | TL072 | U4 |
*See below for MOTM or MU Potentiometers
Module Parts List
| Description | Reference | MOTM Qty | MU Qty |
| Components Kit | 7216-249-1 | 1 | 1 |
| Accessories Pack including: | 7216-249-2 | 1 | 1 |
| Pot Sticky Pads | 7210-188 | 4 | 4 |
| 10mm M4 Spacers | 7210-186 | 4 | 4 |
| M4 x 14 Cap Head Screws | 7210-187 | 4 | 4 |
| M3 x 8mm Stainless Panel Screws | 7216-151 | 4 | |
| LED Spacer | 7210-185 | 1 | 1 |
| 8-Pin IC Socket | 7212-331 | 1 | 1 |
| 14-Pin IC Socket | 7212-332 | 1 | 1 |
| 18-Pin IC Socket | 7212-334 | 2 | 2 |
| Power Lead | 7216-164 | 1 | |
| Toggle Switch Dress Nut | 7210-196 | 2 | 2 |
| M²Synth MU / MOTM Voltage Regulator / Interface | 7216-170 | 1 | |
| MOTM Front Panel | 7216-549 | 1 | |
| MOTM Back Panel (1U4P4S) | 7216-849 | 1 | |
| MU Front and Back Panel | 7219-549 | 1 | |
| Main PCB | 7216-049 | 1 | 1 |
| Jack Socket PCB | 7215-722 | 1 | 1 |
| Jack Sockets | 7212-220 | 4 | 4 |
| B100k Pots Long Shaft Angled | 7300-820 | 4 | |
| B100k Pots Short Shaft Angled | 7300-821 | 4 | |
| KM20B Knobs | 7212-170 | 4 | |
| MU Knobs | 7212-169 | 4 | |
| Circuit Schematic | S-7216-049-c | 1 | 1 |

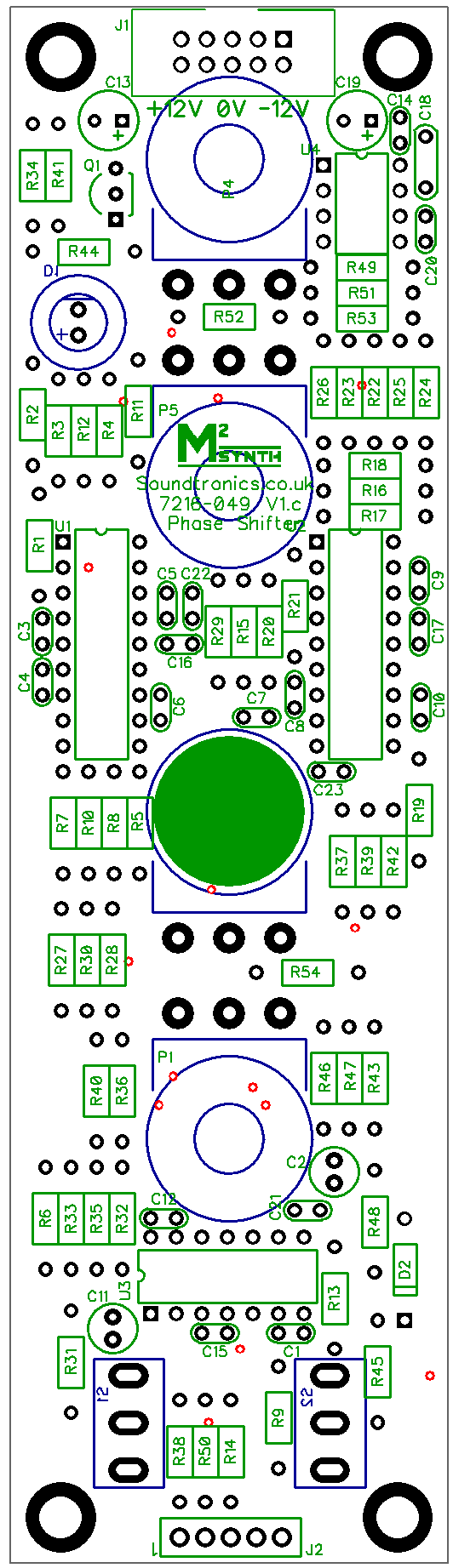

PCB Layout
