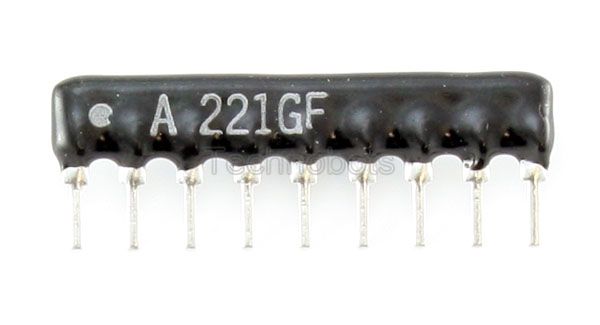

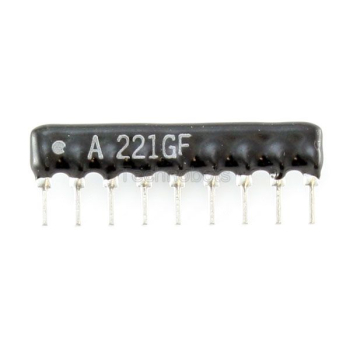

Thick film resistor network housed in single in line, low profile packages coated with a special epoxy resin. Metal glaze elements on a ceramic substrate.
- Power rating (per resistor)- 0.125W
- Tolerance +/- 2%
- Pitch 2.54mm (0.1")
- Temperature coefficient: ±100ppm/°C
- Max.working voltage: 100V
- Operating temperature range: –55°C to +125°C
- Height 5.2mm
- Width 2.5mm
- Pitch 2.54
- No of pins 9
- Length max 22.9
