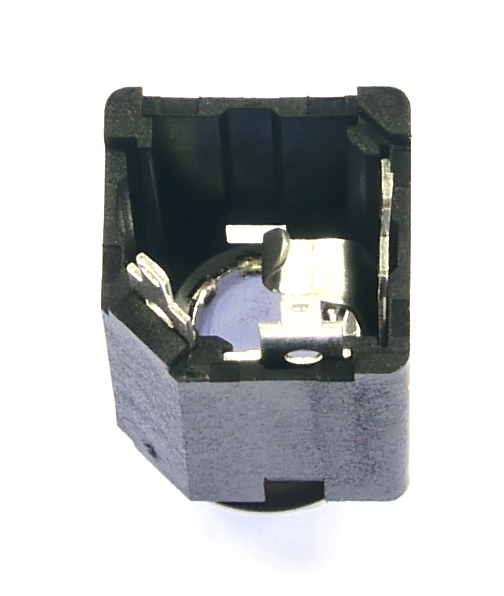

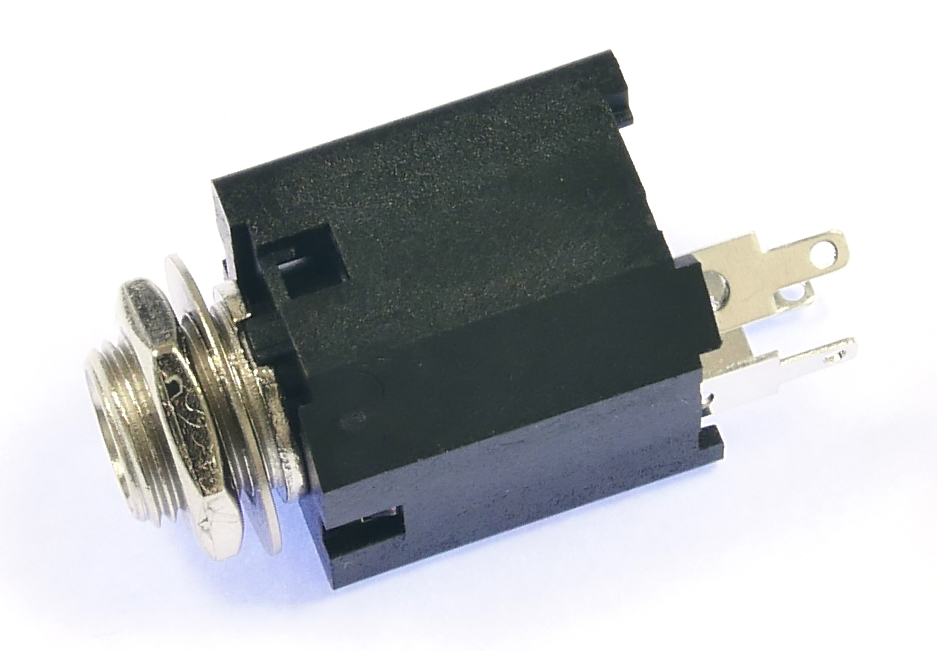

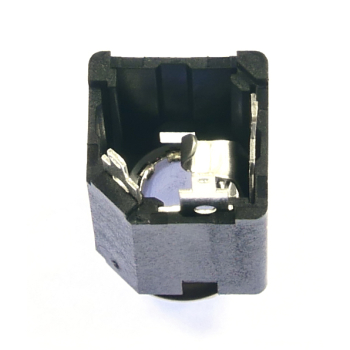

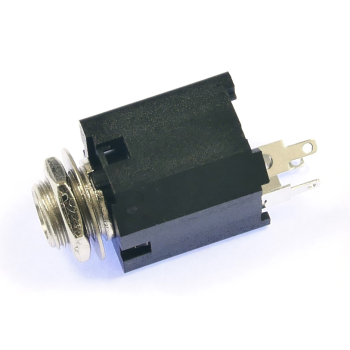

Soundtronics 1/4" (6.35mm) Panel Mount Mono Jack Socket -Type A

£0.90
(£1.08 UK, incl VAT)
7212-220
8 g
In Stock
+
Add to wish list

This 1/4" (6.35mm) mono jack socket is the Soundtronics version of the Switchcraft 112APC which has been the standard jack socket we have used with our synth kits. At less than 1/3 of the price of the Switchcraft 112APC, the Soundtronics sockets represent great value for money.

These sockets are identical in size and shape to the 112APC and can be used with our jack socket breakout boards. We also stock a different version that has a slightly different pin configuration.

Specification:

  • Temperature range: -20 to +70 Deg C
  • Current rating: 0.5A at 30Vdc
  • Contact resistance <0.05 ohms
  • Life span: 5,000 insertions
  • Insulation resistance: >100M

Datasheet (7212-220.pdf, 254 Kb) [Download]
