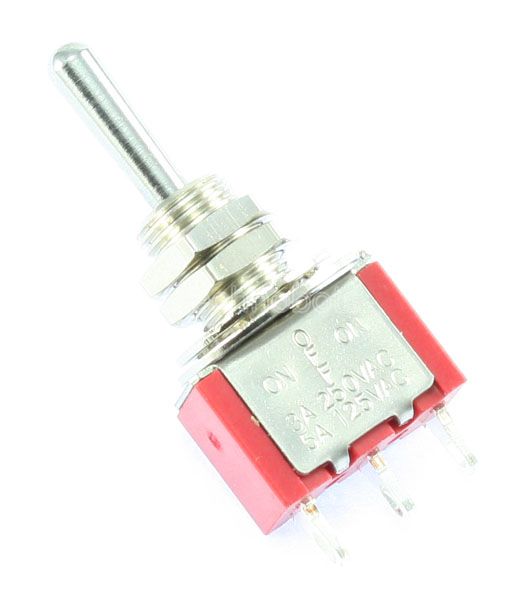

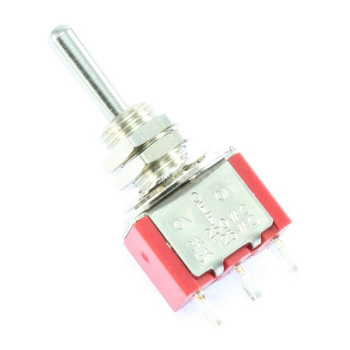

SPDT on/off/on Miniature Toggle Switch

£1.12
(£1.34 UK, incl VAT)
7212-251
6 g
In Stock
+ −
Add to wish list

Like the 7212-250 but with a centre off position.

This switch has a single pole change over contact action)

  • Solder lug terminations
  • Silver plated copper alloy contacts
  • Stainless steel housing
  • 5A 125Vac / 28Vdc
  • 50,000 make and break operations at full load
  • Contact resistance 10mOhms maximum
  • Insulation resistance 1GOhms
  • Dielectric strength 1,500Vrms
  • Operating temperature -30 to +85 Deg C
