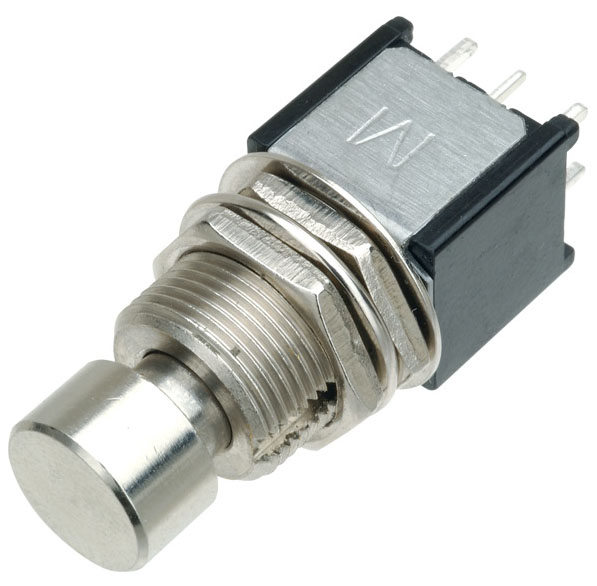

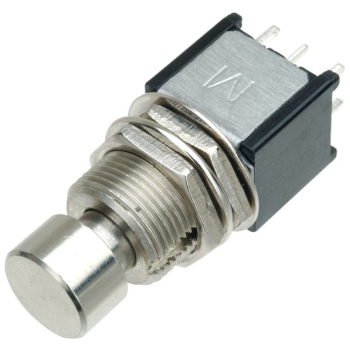

Stomp Switch DPDT Latching Action

£2.54
(£3.05 UK, incl VAT)
7212-260
21 g
14 item(s)
End of line
+ −
Add to wish list

Rugged switch with heavy-duty actuator button designed for operation by foot.

  • Ideal for foot pedals in music applications
  • Use for machinery control leaving hands free
  • DPDT contacts
  • Latching action (push on / push off)
Rating AC 125V, 6A, AC 250V, 3A, DC 30V, 4A
Contact material Silver
Contact resistance 50mΩ max.
Insulation resistance DC 500V, 100MΩ min.
Withstand voltage AC 1000V for 1 minute
Operating force 1.2±0.3kgf
Travel 2.7mm
Overall dimensions 13.4 x 12 x 37mm
Depth behind panel 28.5mm
Fixing thread 12mm dia. x 0.75mm pitch
Life expectancy 30,000 cycles

Downloads

Datasheet (1613-353.pdf, 206 Kb) [Download]
