Save 17%

YuSynth Metalizer Module Aluminium Back Panel

List price: £5.67
£4.73
(£5.68 UK, incl VAT) You save: £0.94 (17%)
7220-864
75 g
8 item(s)
End of line
+ −
Add to wish list

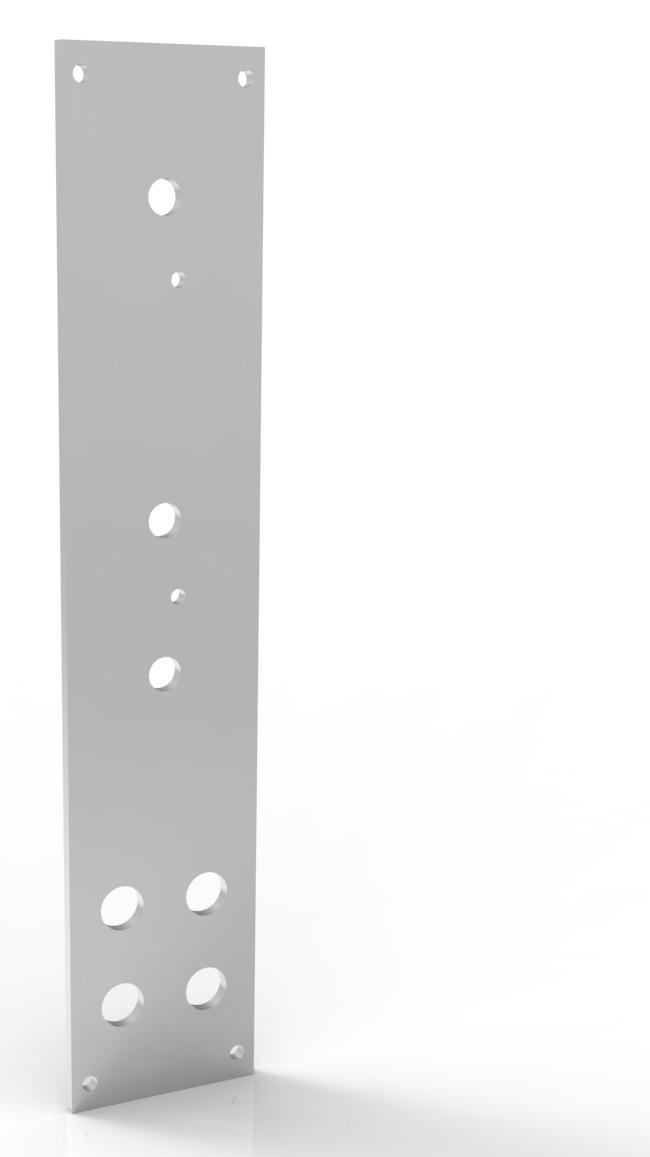

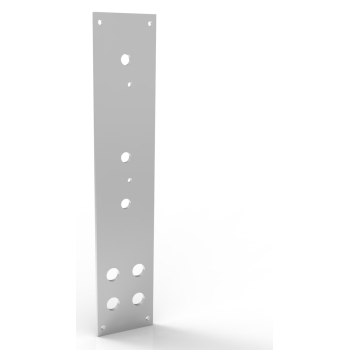

A 5U high by 1U wide (222.25x44.45mm) 3mm thick high grade 5251 H22 aluminium back panel for use with our matching Metalizer laser engraved front panel. We manufacture these panels in-house on our CNC router and are supplied ready for use. The panel is also pre-tapped with fixing holes for our 'L' brackets for attaching the Acrylic PCB Holder.

The 3mm thickness + the 1.5mm thickness of the engraved front panel is optimum when used with our sockets, pots, switches and knobs as it minimises any exposed threads.
