General Overview
To house the M²Synth, we have our own 'Pod' system where you can make up larger systems (racks) by joining together multiple Pods. There are two main types of Pod with all types having capacity for up to 10U's worth of modules. The Base Pod can sit on a table and has integral rubber fit to stop it from sliding about when patching. The other main type is the Expansion Pod and while it can be used as is, it was designed to connect to the Base Pod or indeed another Expansion Pod when expanding vertically upwards.
Both the Base and the expansion Pods can be extended horizontally by means of Base Extender Pods and Expansion Extender Pods.

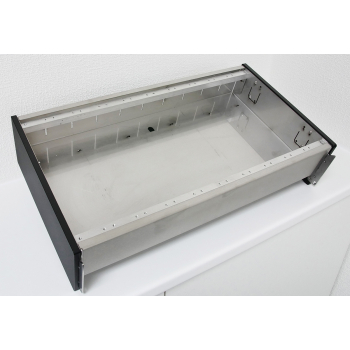

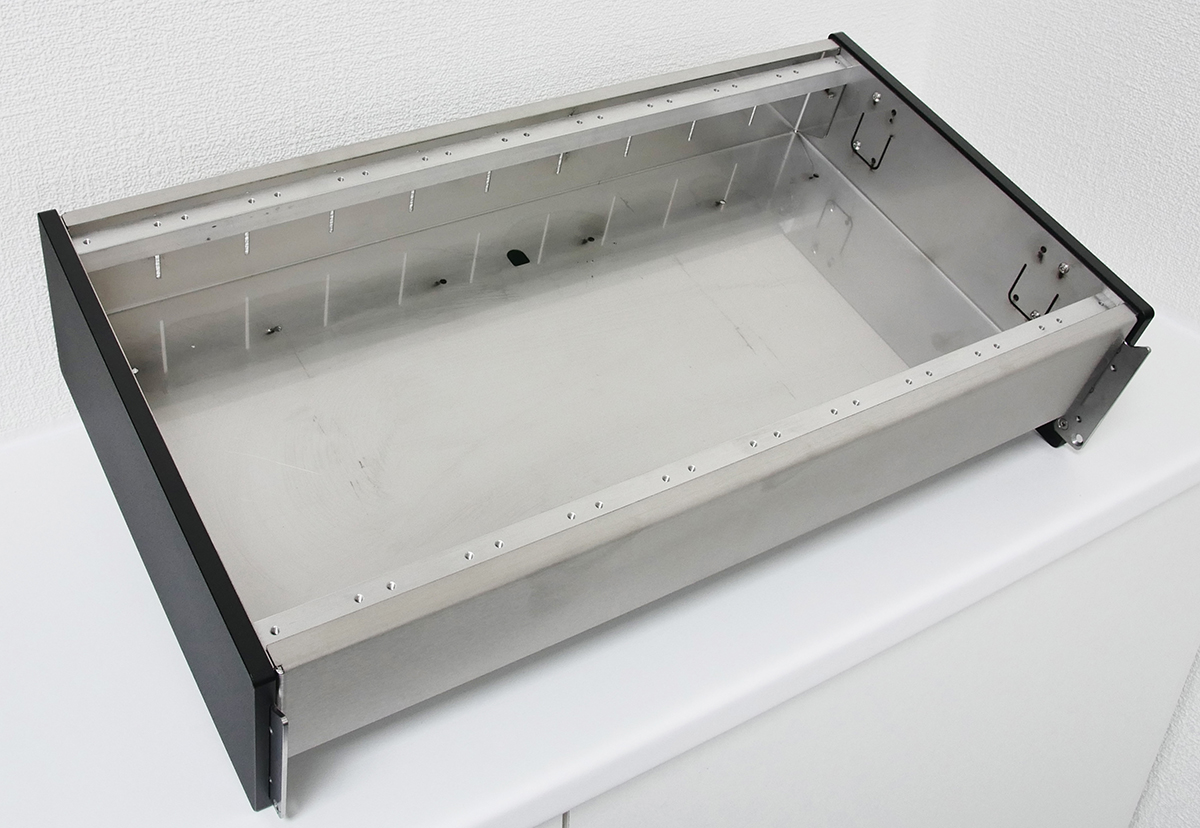

All Pods consist of a brushed stainless steel 'tray' to which are fitted module mounting rails and 8mm solid aluminium end cheeks.
The base Pods are fitted with a sub-frame that provides additional strength which is especially important when extending the system for mounting onto a keyboard stand.
7216-111 Features

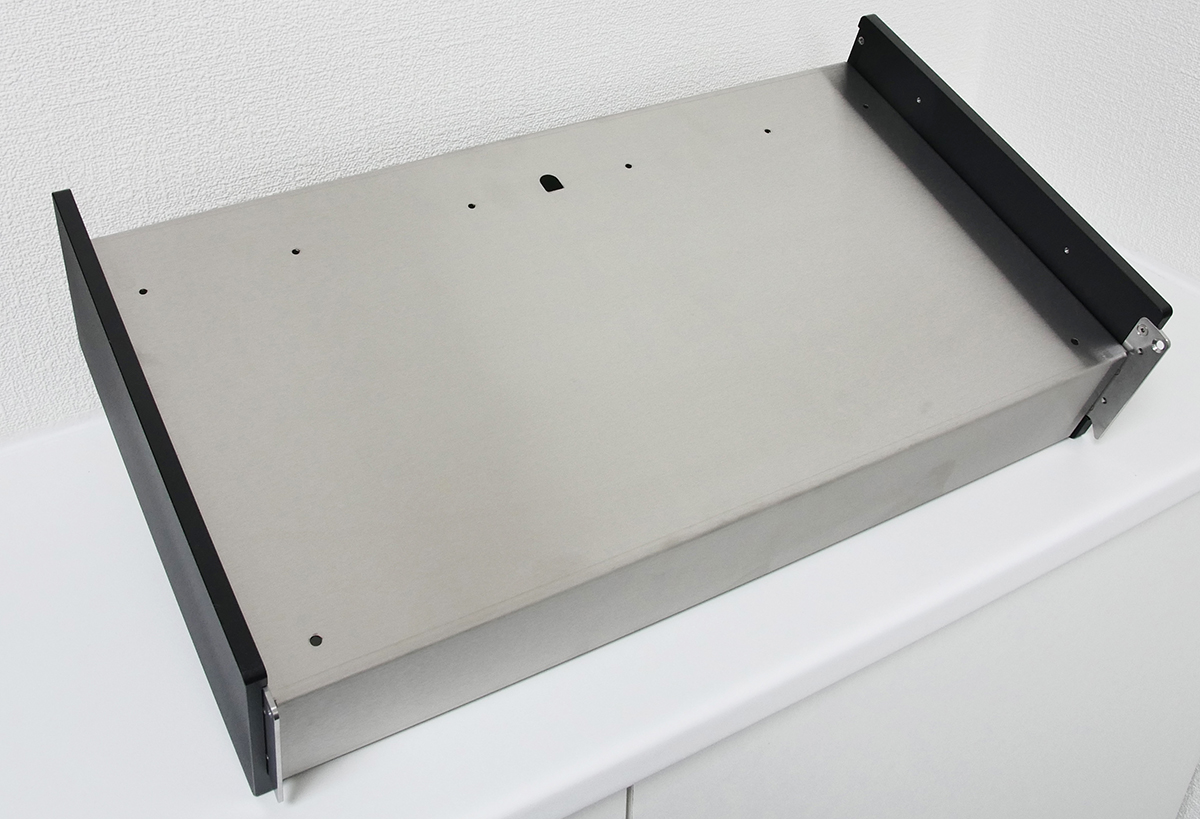

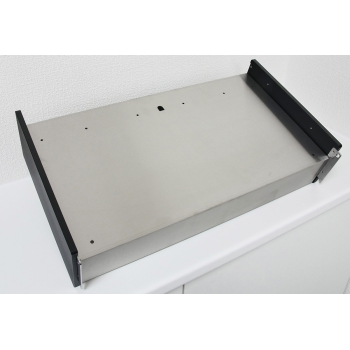

7216-111 is a complete Expansion Pod including both end cheeks and module mounting rails and is supplied flat packed to keep shipping costs down otherwise it would be charge by volumetric weight by the carrier. Not included is the power distribution board, Pod Couplers or a power brick.
Specifications
- Overall dimensions: length 463mm, depth 105mm and height 249mm
- Weight 3kg
- Maximum module depth 60mm with a reduced depth above the power distribution board. All M²Synth modules fit in comfortably of course but if using a third party module best to check first.
